本节目标

  • portainer 容器管理工具
  • 数据库设计过程
  • 数据库设计目标、规范、习惯
  • graphql 条件查询、排序
  • flutter 代码实现

视频

https://www.bilibili.com/video/BV1jD4y1S7Mu/

代码

https://github.com/ducafecat/flutter_learn_news/releases/tag/v1.0.15

strapi 运行环境网盘下载

  • 网盘

链接:https://pan.baidu.com/s/13Ujy2hzXp8tSqxCx_4IhVQ
密码:yu82

  • 文件
名称 说明
strapi-docker-compose-00.zip 干净环境，已安装 graphql 插件
strapi-docker-compose-15.zip 15 课内容
  • 运行

需要用 docker-compose 启动
账号 admin
密码 123456

1
2
3
4
5
# 启动
docker-compose up -d --remove-orphans

# 关闭
docker-compose down

工具

正文

安装 portainer

1
2
3
4
5
docker run -d -p 9000:9000 \
    --restart=always \
    -v /var/run/docker.sock:/var/run/docker.sock \
    --name portainer-local \
    portainer/portainer

设计数据模型

ER 图 -> 设计范式 -> 数据库物理表

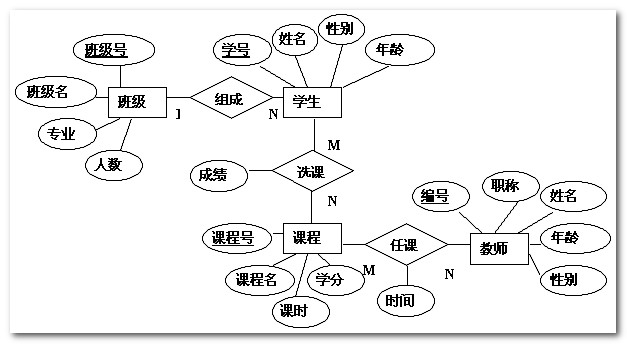

  • ER
  • 范式

https://zh.wikipedia.org/wiki/%E6%95%B0%E6%8D%AE%E5%BA%93%E8%A7%84%E8%8C%83%E5%8C%96

  • 设计规范 表前缀

sys 系统、用户、权限
dict 字典表
bus_ 业务

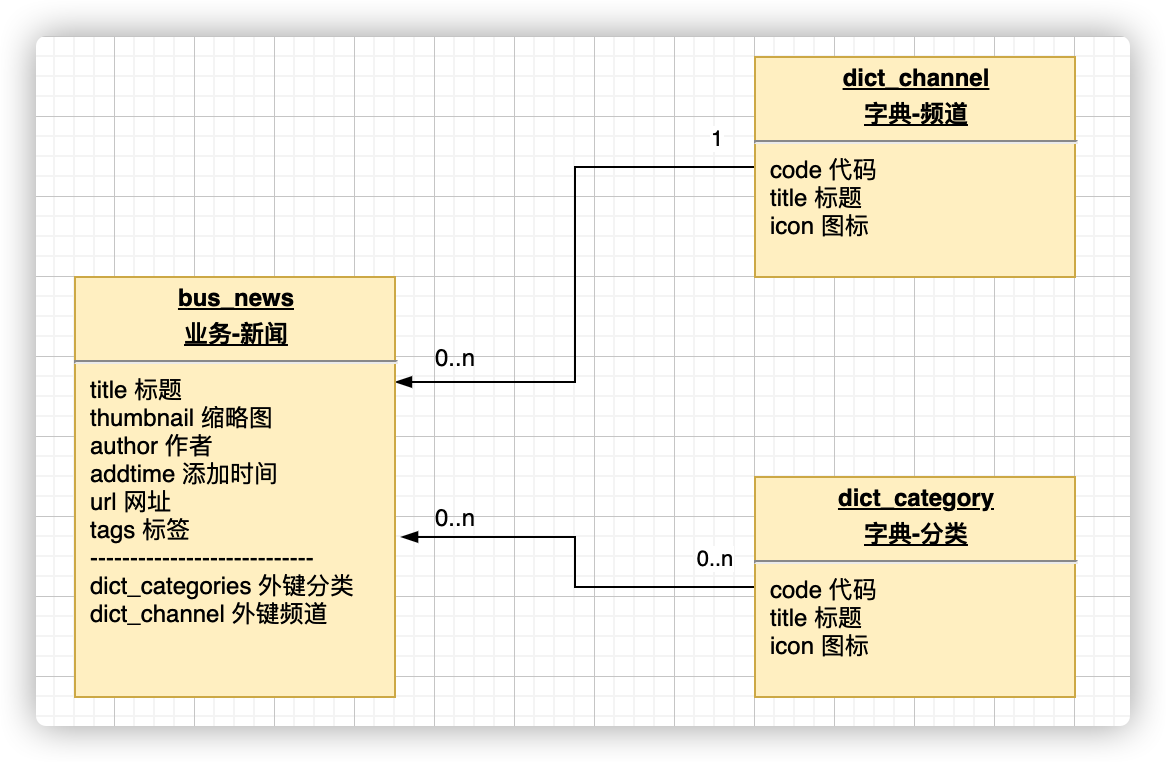

  • 设计数据 对象、属性、关系

创建 strapi 数据类型

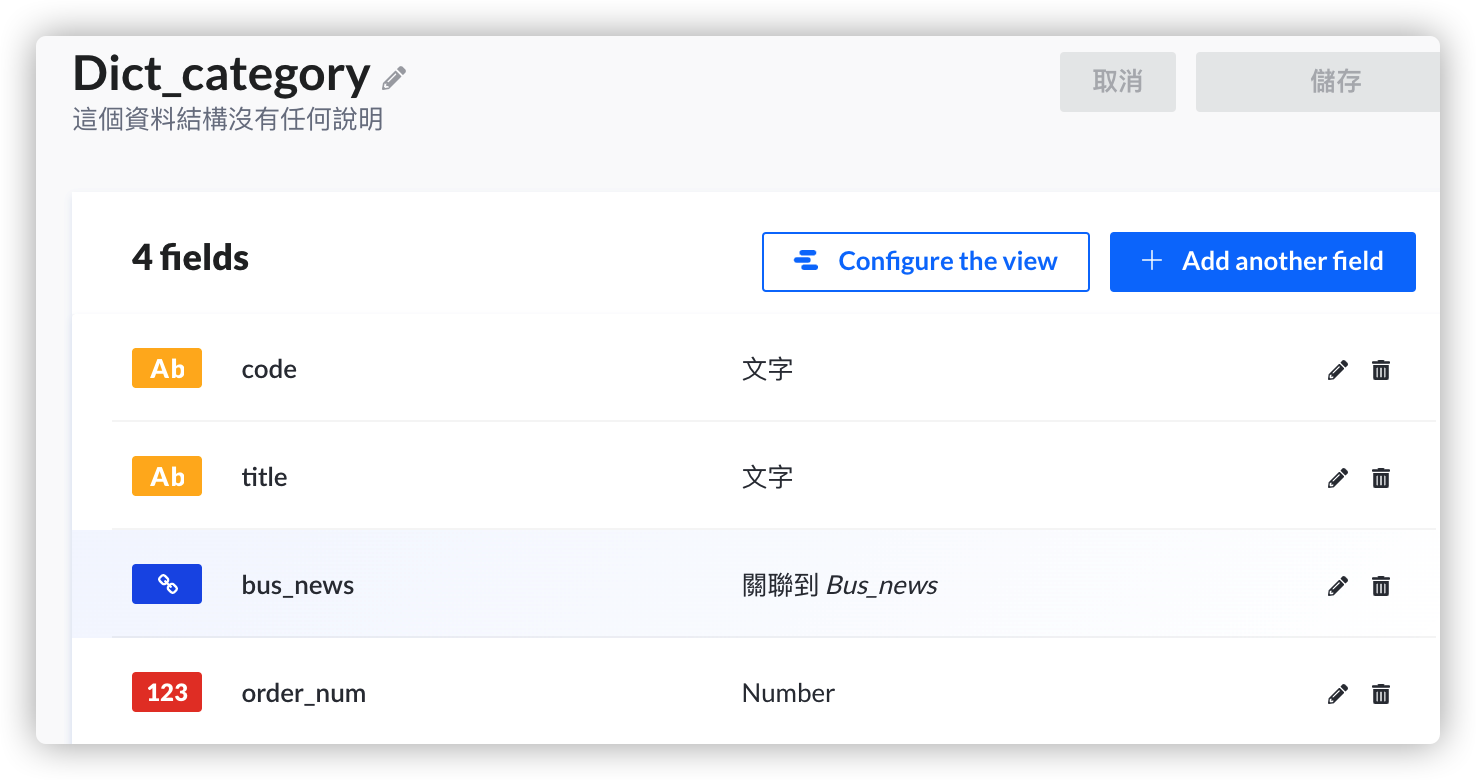

  • 创建外键表 新闻分类

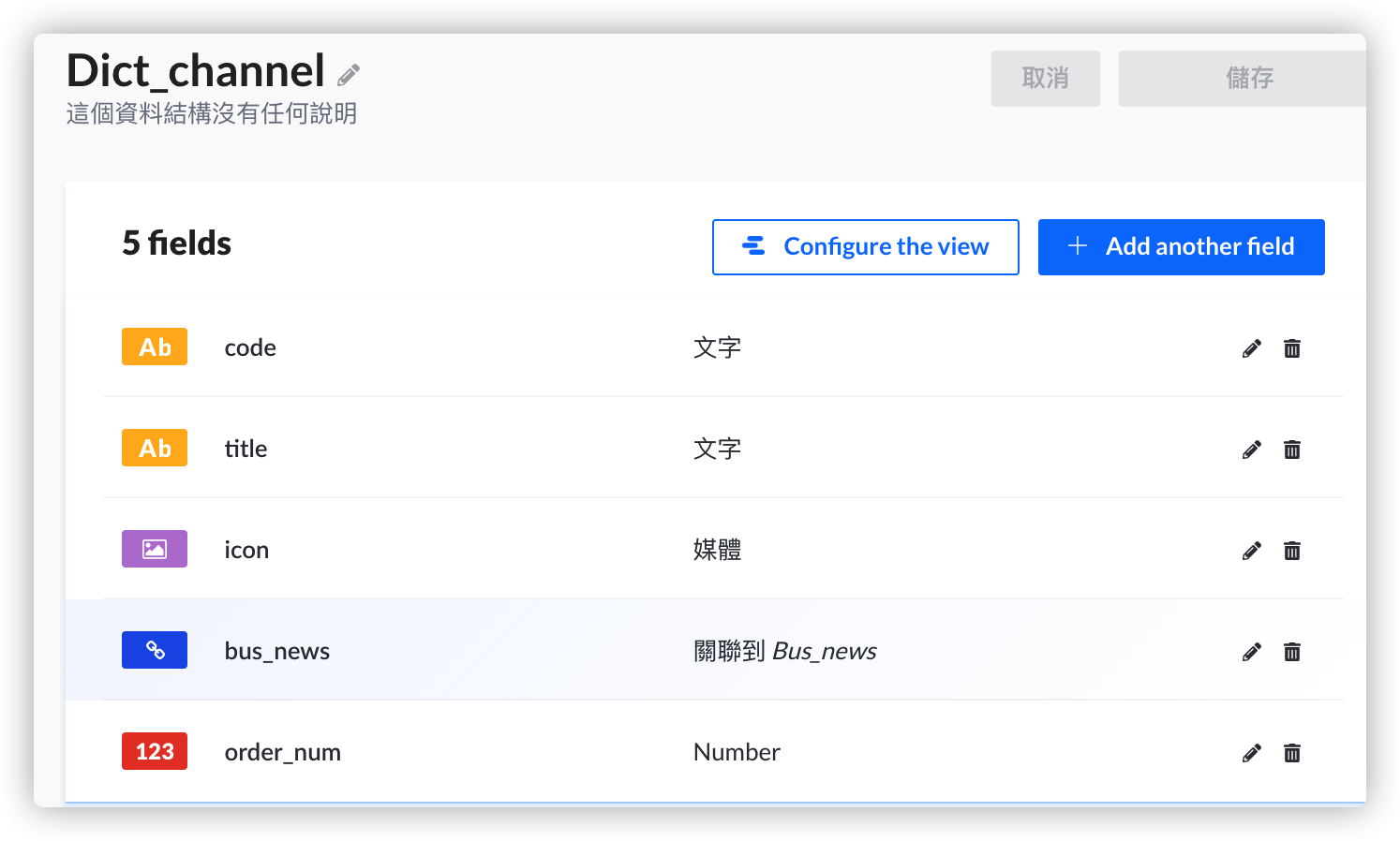

  • 创建外键表 新闻频道

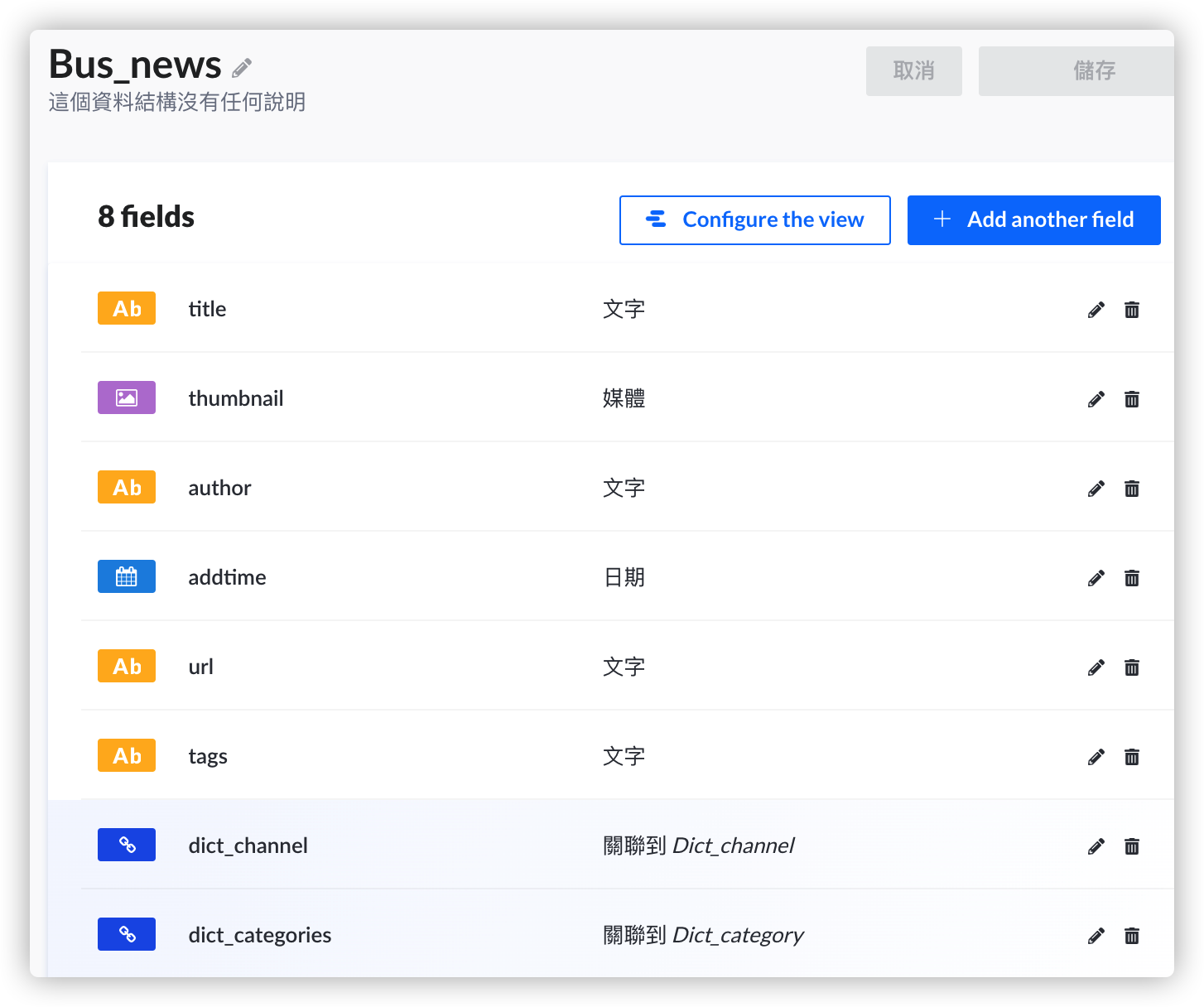

  • 创建业务表 新闻内容

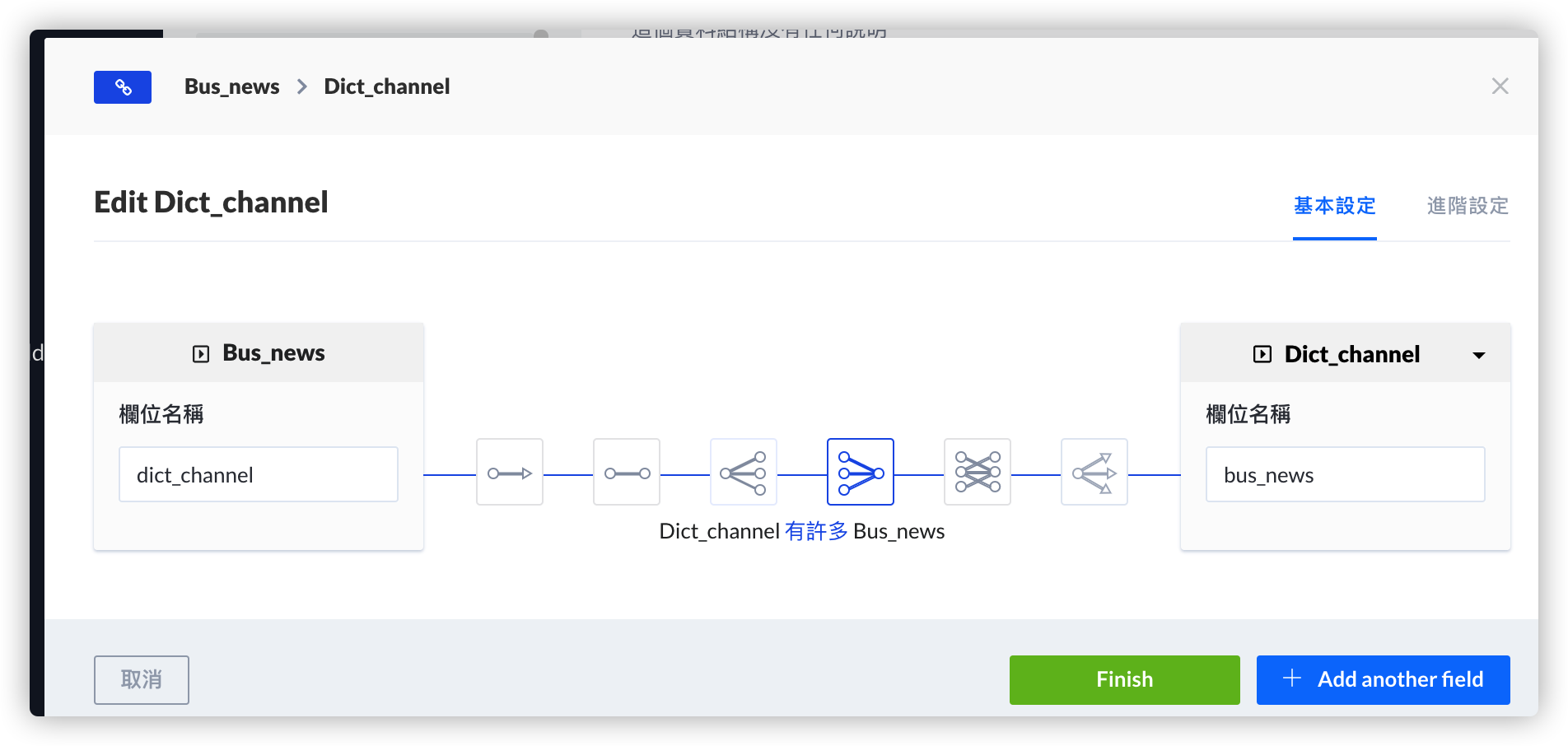

  • 创建链接外键 新闻内容、分类、频道

编写 graphql 查询

  • 新闻
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
query News($category_code: String) {
  busNews(where: { dict_categories: { code: $category_code } }) {
    title
    dict_channel {
      code
      title
      icon {
        url
      }
    }
    dict_categories {
      code
      title
    }
    author
    url
    addtime
    thumbnail {
      url
    }
  }
}
  • 首页
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
query pageIndex {
  # 分类
  dictCategories(sort: "sortNum:desc") {
    code
    title
  }
  # 频道
  dictChannels(sort: "sortNum:desc") {
    code
    title
    icon {
      url
    }
  }
  # 热点
  busNews(where: { dict_categories: { code: "news_hot" } }) {
    title
    dict_channel {
      code
      title
      icon {
        url
      }
    }
    dict_categories {
      code
      title
    }
    author
    url
    addtime
    thumbnail {
      url
    }
  }
}

编写 flutter 代码

  • 实例 entity

lib/common/entitys/gql_news.dart

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
// 首页
class GqlIndexResponseEntity {
  GqlIndexResponseEntity({
    this.dictCategories,
    this.dictChannels,
    this.busNews,
  });

  List<DictCategoryEntity> dictCategories;
  List<DictChannelEntity> dictChannels;
  List<GqlNewsResponseEntity> busNews;

  factory GqlIndexResponseEntity.fromJson(Map<String, dynamic> json) =>
      GqlIndexResponseEntity(
        dictCategories: List<DictCategoryEntity>.from(
            json["dictCategories"].map((x) => DictCategoryEntity.fromJson(x))),
        dictChannels: List<DictChannelEntity>.from(
            json["dictChannels"].map((x) => DictChannelEntity.fromJson(x))),
        busNews: List<GqlNewsResponseEntity>.from(
            json["busNews"].map((x) => GqlNewsResponseEntity.fromJson(x))),
      );

  Map<String, dynamic> toJson() => {
        "dictCategories":
            List<dynamic>.from(dictCategories.map((x) => x.toJson())),
        "dictChannels": List<dynamic>.from(dictChannels.map((x) => x.toJson())),
        "busNews": List<dynamic>.from(busNews.map((x) => x.toJson())),
      };
}

// 新闻
class GqlNewsResponseEntity {
  GqlNewsResponseEntity({
    this.title,
    this.dictChannel,
    this.dictCategories,
    this.author,
    this.url,
    this.addtime,
    this.thumbnail,
  });

  String title;
  DictChannelEntity dictChannel;
  List<DictCategoryEntity> dictCategories;
  String author;
  String url;
  DateTime addtime;
  ThumbnailEntity thumbnail;

  factory GqlNewsResponseEntity.fromJson(Map<String, dynamic> json) =>
      GqlNewsResponseEntity(
        title: json["title"],
        dictChannel: DictChannelEntity.fromJson(json["dict_channel"]),
        dictCategories: List<DictCategoryEntity>.from(
            json["dict_categories"].map((x) => DictCategoryEntity.fromJson(x))),
        author: json["author"],
        url: json["url"],
        addtime: DateTime.parse(json["addtime"]),
        thumbnail: ThumbnailEntity.fromJson(json["thumbnail"]),
      );

  Map<String, dynamic> toJson() => {
        "title": title,
        "dict_channel": dictChannel.toJson(),
        "dict_categories":
            List<dynamic>.from(dictCategories.map((x) => x.toJson())),
        "author": author,
        "url": url,
        "addtime":
            "${addtime.year.toString().padLeft(4, '0')}-${addtime.month.toString().padLeft(2, '0')}-${addtime.day.toString().padLeft(2, '0')}",
        "ThumbnailEntity": thumbnail.toJson(),
      };
}

// 分类
class DictCategoryEntity {
  DictCategoryEntity({
    this.code,
    this.title,
  });

  String code;
  String title;

  factory DictCategoryEntity.fromJson(Map<String, dynamic> json) =>
      DictCategoryEntity(
        code: json["code"],
        title: json["title"],
      );

  Map<String, dynamic> toJson() => {
        "code": code,
        "title": title,
      };
}

// 频道
class DictChannelEntity {
  DictChannelEntity({
    this.code,
    this.title,
    this.icon,
  });

  String code;
  String title;
  ThumbnailEntity icon;

  factory DictChannelEntity.fromJson(Map<String, dynamic> json) =>
      DictChannelEntity(
        code: json["code"],
        title: json["title"],
        icon: ThumbnailEntity.fromJson(json["icon"]),
      );

  Map<String, dynamic> toJson() => {
        "code": code,
        "title": title,
        "icon": icon.toJson(),
      };
}

// 图
class ThumbnailEntity {
  ThumbnailEntity({
    this.url,
  });

  String url;

  factory ThumbnailEntity.fromJson(Map<String, dynamic> json) =>
      ThumbnailEntity(
        url: json["url"],
      );

  Map<String, dynamic> toJson() => {
        "url": url,
      };
}
  • api

lib/common/apis/gql_news.dart

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
/// 新闻
class GqlNewsAPI {
  /// 首页
  static Future<GqlIndexResponseEntity> indexPageInfo({
    @required BuildContext context,
    Map<String, dynamic> params,
  }) async {
    QueryResult response =
        await GraphqlClientUtil.query(context: context, schema: GQL_INDEX_PAGE);

    return GqlIndexResponseEntity.fromJson(response.data);
  }

  /// 翻页
  static Future<List<GqlNewsResponseEntity>> newsPageList({
    @required BuildContext context,
    Map<String, dynamic> params,
  }) async {
    QueryResult response = await GraphqlClientUtil.query(
        context: context, schema: GQL_NEWS_LIST, variables: params);

    return response.data['busNews']
        .map<GqlNewsResponseEntity>(
            (item) => GqlNewsResponseEntity.fromJson(item))
        .toList();
  }
}
  • 界面业务代码

lib/pages/main/main.dart

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
GqlIndexResponseEntity _indexPageData; // 首页数据

// 读取所有数据
_loadAllData() async {
  _indexPageData = await GqlNewsAPI.indexPageInfo(context: context);
  ...

  if (mounted) {
    setState(() {});
  }
}

// 拉取推荐、新闻
_loadNewsData(
  categoryCode, {
  bool refresh = false,
}) async {
  _selCategoryCode = categoryCode;
  _newsPageList = await GqlNewsAPI.newsPageList(
      context: context, params: {"category_code": categoryCode});

  if (mounted) {
    setState(() {});
  }
}

...

详见 git

资源

设计稿蓝湖预览

https://lanhuapp.com/url/lYuz1
密码: gSKl

蓝湖现在收费了，所以查看标记还请自己上传 xd 设计稿
商业设计稿文件不好直接分享, 可以加微信联系 ducafecat
