本节目标

  • 详情页技术方案比较
  • 载入 web 内容
  • 自动计算高度
  • 清除广告、推荐
  • 拦截请求
  • loading 状态显示
  • 分享插件
  • 远程 android 设备调试

视频

代码

https://github.com/ducafecat/flutter_learn_news/releases/tag/v1.0.9

详情展示

技术方案选择

分析工具 UI automator view

  • 文件位置

/Users/ducafecat/Library/Android/sdk/tools/bin/uiautomatorviewer

淘宝方案

混合方式

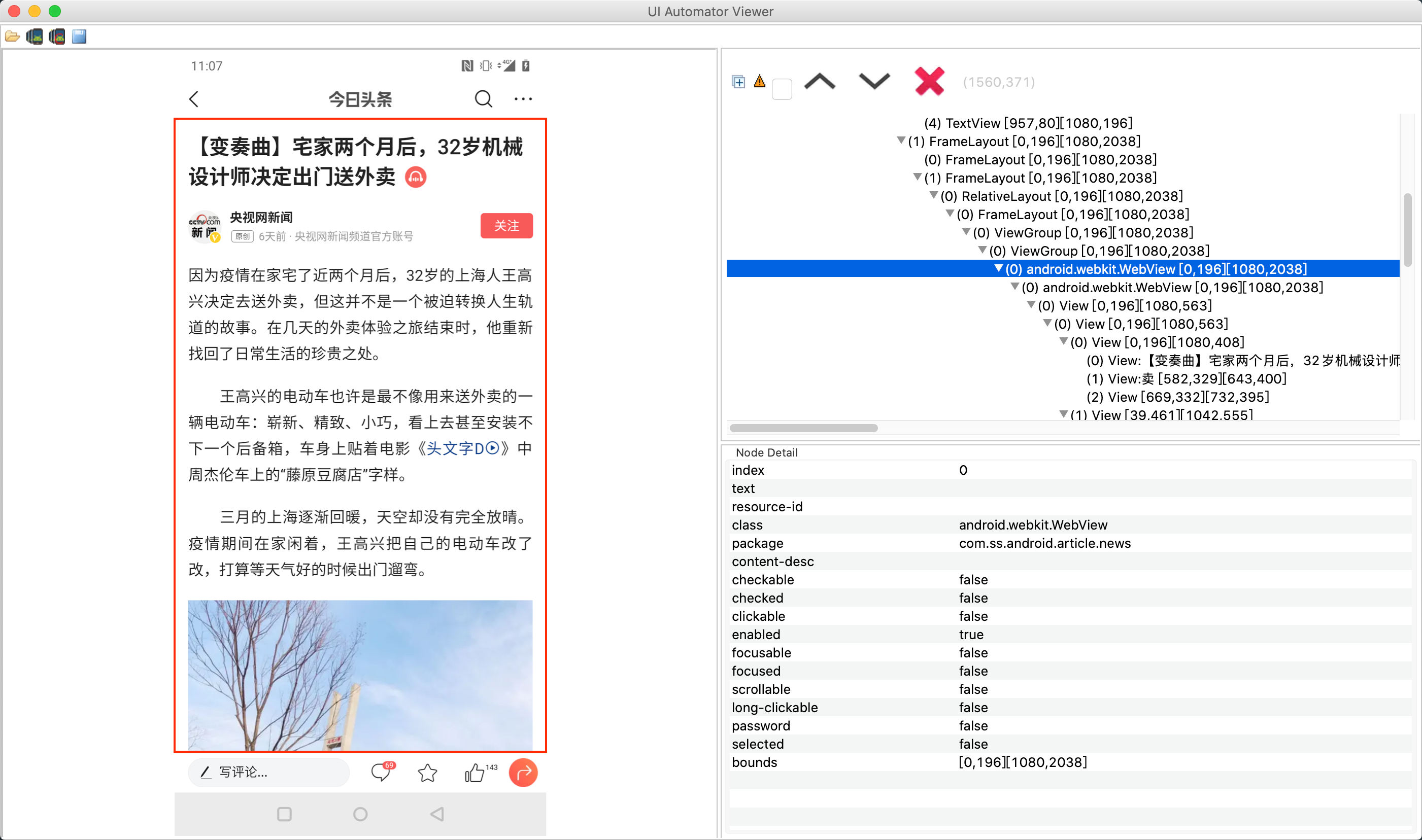

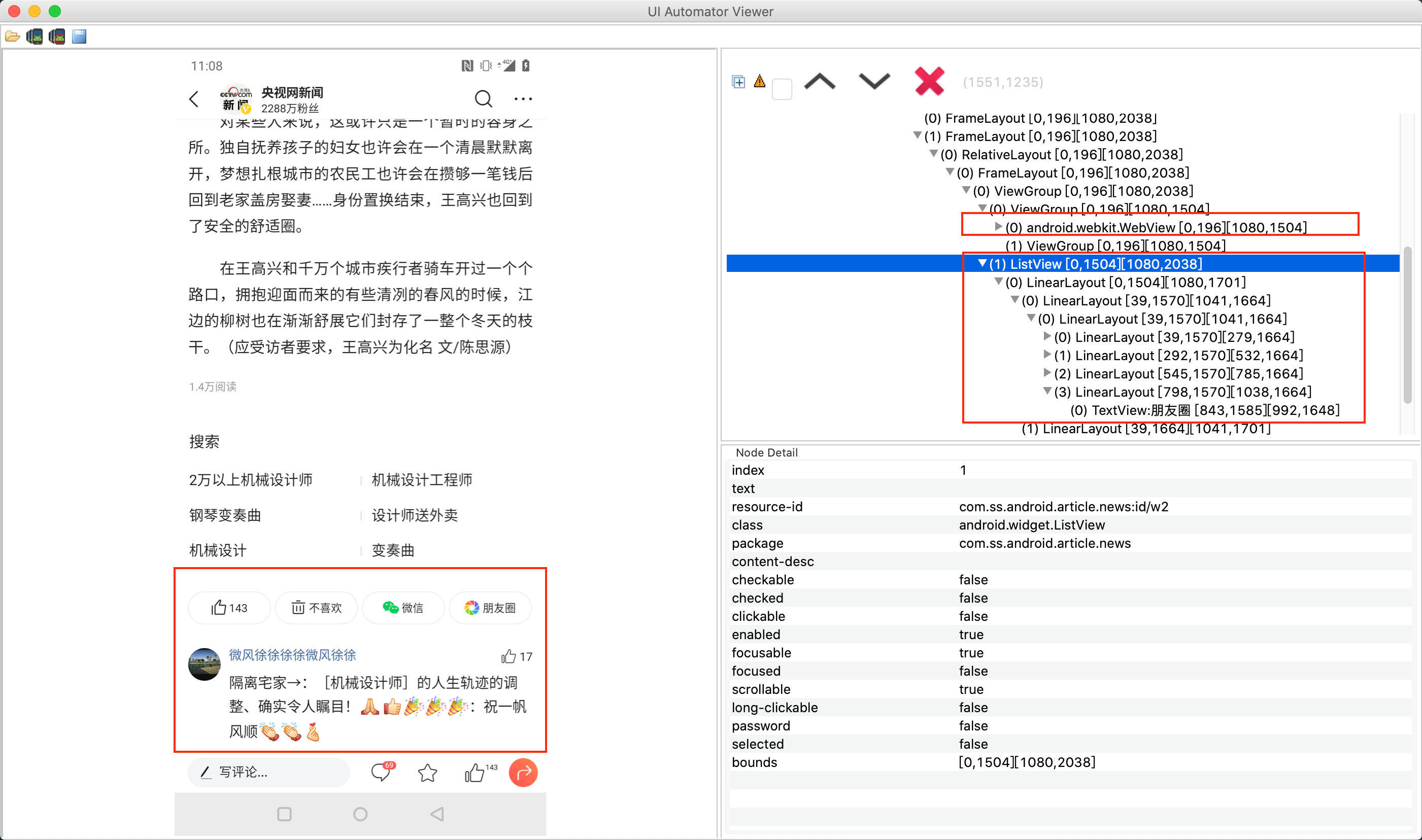

头条

混合方式

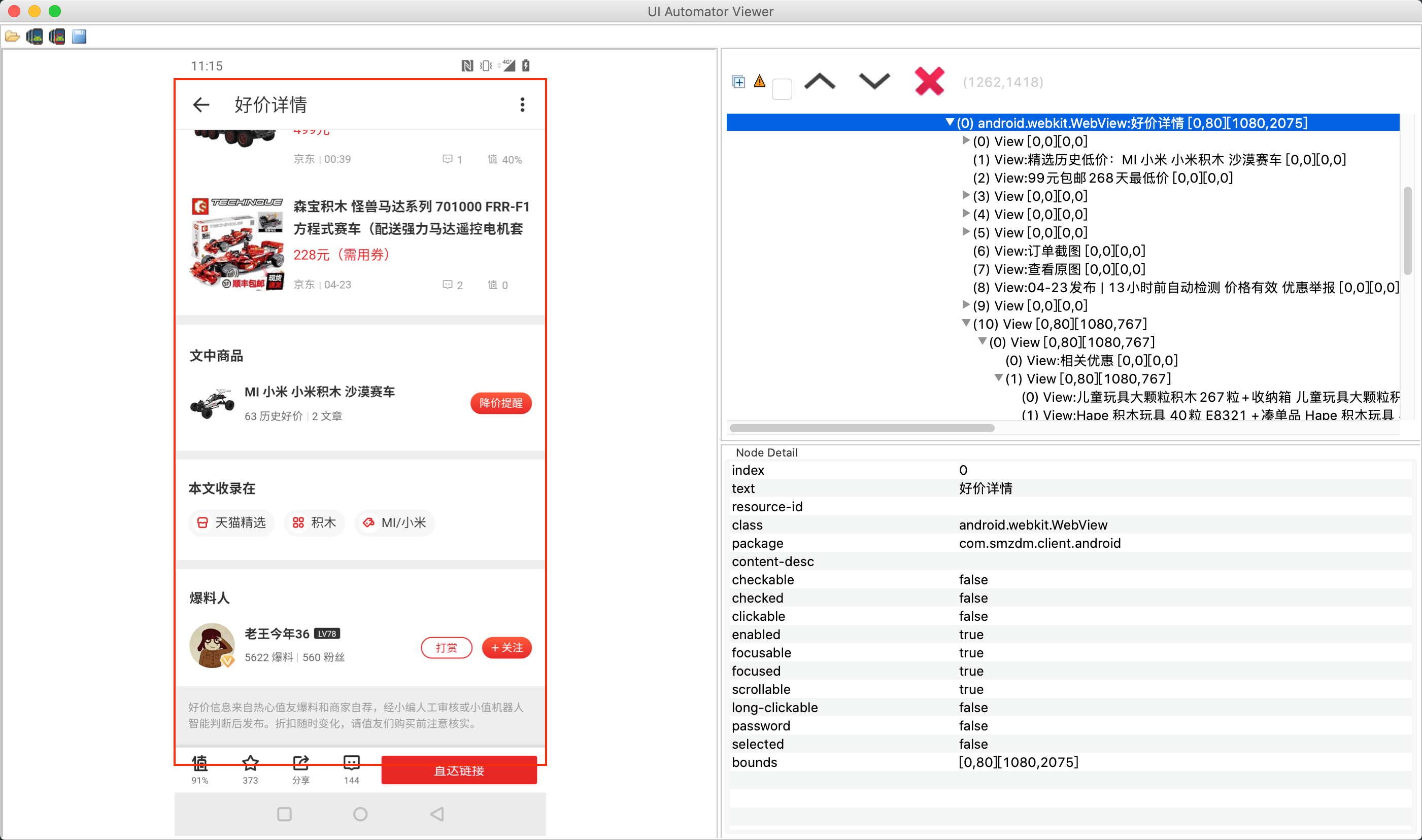

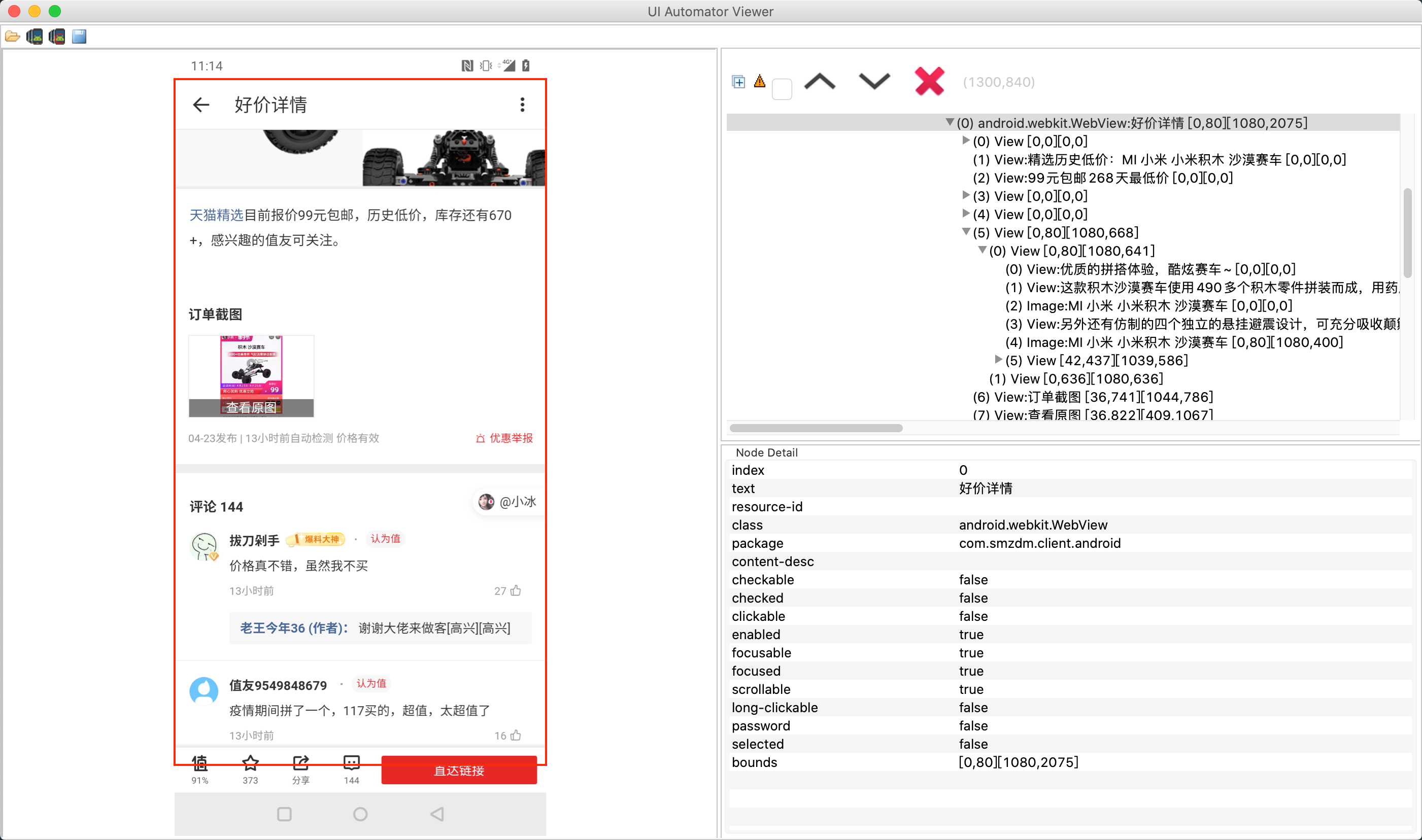

什么值得买

单一 webView

技术点分析

    1. webView 原生 混合方式
    1. 计算 web 页面高度
    1. 拦截请求，自定义指令
    1. 内存占用（尽量少的 dom 元素）

安装插件

  • webview_flutter

https://pub.flutter-io.cn/packages/webview_flutter

  • pubspec.yaml
1
2
dependencies:
  webview_flutter: ^0.3.20+2
  • ios/Runner/Info.plist
1
2
<key>io.flutter.embedded_views_preview</key>
<true/>

构建界面代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
// 顶部导航
Widget _buildAppBar() {
  return Container();
}

// 页标题
Widget _buildPageTitle() {
  return Container();
}

// 页头部
Widget _buildPageHeader() {
  return Container();
}

// web内容
Widget _buildWebView() {
  return Container();
}

@override
Widget build(BuildContext context) {
  return Scaffold(
      appBar: _buildAppBar(),
      body: SingleChildScrollView(
            child: Column(
              children: <Widget>[
                _buildPageTitle(),
                Divider(height: 1),
                _buildPageHeader(),
                _buildWebView(),
              ],
            ),
          ),
        );
}

url 载入

1
2
3
4
5
6
7
8
9
10
11
12
13
14
Widget _buildWebView() {
  return Container(
    height: _webViewHeight,
    child: WebView(
      initialUrl:
          '$SERVER_API_URL/news/content/${widget.item.id}', //widget.url,
      javascriptMode: JavascriptMode.unrestricted,
      onWebViewCreated: (WebViewController webViewController) async {
        _controller.complete(webViewController);
      },
      gestureNavigationEnabled: true,
    ),
  );
}

计算高度

1
2
3
4
5
double _webViewHeight = 200;

      javascriptChannels: <JavascriptChannel>[
        _invokeJavascriptChannel(context),
      ].toSet(),
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

// 注册js回调
JavascriptChannel _invokeJavascriptChannel(BuildContext context) {
  return JavascriptChannel(
      name: 'Invoke',
      onMessageReceived: (JavascriptMessage message) {
        print(message.message);
        var webHeight = double.parse(message.message);
        if (webHeight != null) {
          setState(() {
            _webViewHeight = webHeight;
          });
        }
      });
}
  • 回调
1
2
3
4
5
6
onPageFinished: (String url) {
  _getWebViewHeight();
  setState(() {
    _isPageFinished = true;
  });
},
1
2
3
4
5
6
7
8
9
10
11
12
// 获取页面高度
_getWebViewHeight() async {
  await (await _controller.future)?.evaluateJavascript('''
      try {
        // Invoke.postMessage([document.body.clientHeight,document.documentElement.clientHeight,document.documentElement.scrollHeight]);
        let scrollHeight = document.documentElement.scrollHeight;
        if (scrollHeight) {
          Invoke.postMessage(scrollHeight);
        }
      } catch {}
      ''');
}

清除广告、推荐

1
2
3
4
5
6
7
8
9
onPageStarted: (String url) {
  Timer(Duration(seconds: 1), () {
     setState(() {
       _isPageFinished = true;
     });
   _removeAd();
   _getViewHeight();
  });
},
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
_removeWebViewAd() async {
  await (await _controller.future)?.evaluateJavascript('''
      try {
        function removeElement(elementName){
          let _element = document.getElementById(elementName);
          if(!_element) {
            _element = document.querySelector(elementName);
          }
          if(!_element) {
            return;
          }
          let _parentElement = _element.parentNode;
          if(_parentElement){
              _parentElement.removeChild(_element);
          }
        }

        removeElement('module-engadget-deeplink-top-ad');
        removeElement('module-engadget-deeplink-streams');
        removeElement('footer');
      } catch{}
      ''');
}

拦截请求

  • 页面中 href
1
2
3
4
5
6
7
8
9
10
11
<div class="tags">
  <a href="/tag/chrome-os" class="tag">chrome os</a>
  <a href="/tag/chromebook" class="tag">chromebook</a>
  <a href="/tag/computer" class="tag">computer</a>
  <a href="/tag/gear" class="tag">gear</a>
  <a href="/tag/google" class="tag">google</a>
  <a href="/tag/laptop" class="tag">laptop</a>
  <a href="/tag/personal computing" class="tag">personal computing</a>
  <a href="/tag/personalcomputing" class="tag">personalcomputing</a>
  <a href="/tag/pixelbook-go" class="tag">pixelbook go</a>
</div>
  • navigation 拦截
1
2
3
4
5
6
7
navigationDelegate: (NavigationRequest request) {
  if (request.url != '$SERVER_API_URL/news/content/${widget.item.id}') {
    toastInfo(msg: request.url);
    return NavigationDecision.prevent;
  }
  return NavigationDecision.navigate;
},

loading 状态显示

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

bool _isPageFinished = false;

@override
Widget build(BuildContext context) {
  return Scaffold(
      appBar: _buildAppBar(),
      body: Stack(
        children: <Widget>[
          SingleChildScrollView(
            child: Column(
              children: <Widget>[
                _buildPageTitle(),
                Divider(height: 1),
                _buildPageHeader(),
                _buildWebView(),
              ],
            ),
          ),
          _isPageFinished == true
              ? Container()
              : Align(
                  alignment: Alignment.center,
                  child: LoadingBouncingGrid.square(),
                ),
        ],
      ));
}

分享

安装插件

1
2
dependencies:
  share: ^0.6.4

代码

1
2
3
onPressed: () {
  Share.share('${widget.item.title} ${widget.item.url}');
},

真机调试

  • scrcpy

https://github.com/Genymobile/scrcpy

资源

视频

蓝湖设计稿（加微信给授权 ducafecat）

https://lanhuapp.com/url/lYuz1
密码: gSKl

蓝湖现在收费了，所以查看标记还请自己上传 xd 设计稿
商业设计稿文件不好直接分享, 可以加微信联系 ducafecat

YAPI 接口管理

http://yapi.demo.qunar.com/

参考

https://pub.flutter-io.cn/packages/webview_flutter
https://pub.flutter-io.cn/packages/loading_animations
https://pub.flutter-io.cn/packages/share
https://github.com/Genymobile/scrcpy
