Flutter开源项目 - appFlowy 真的是 Notion 的替代品? 一周暴涨 star 9k 多!

git

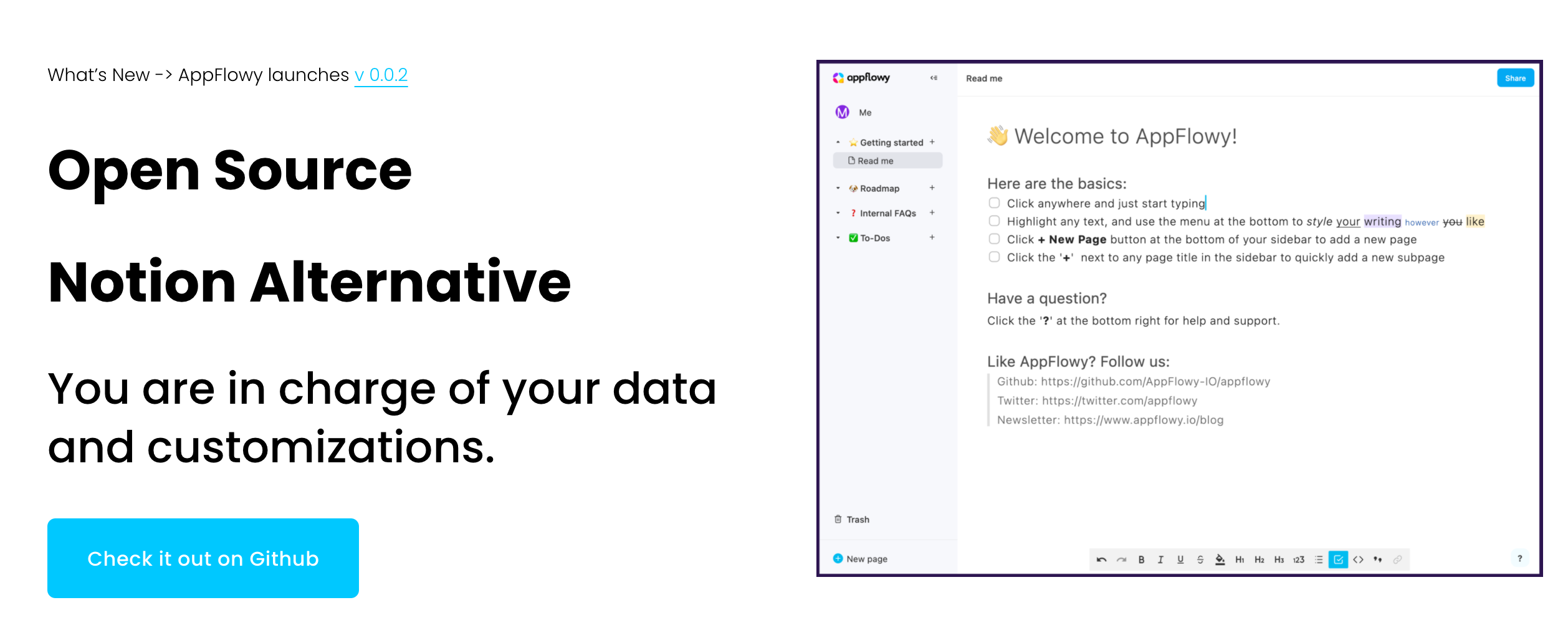

https://www.appflowy.io/

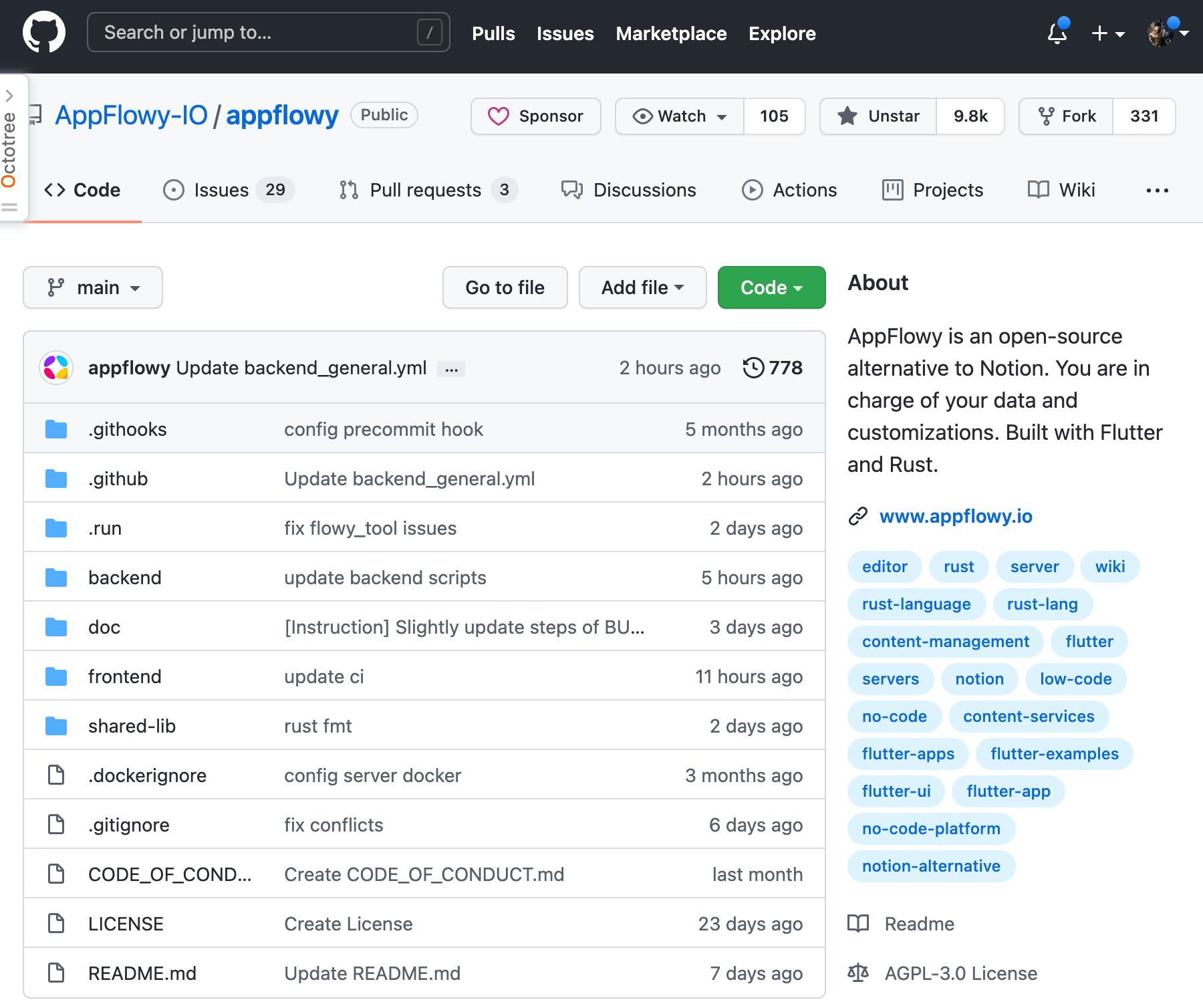

https://github.com/AppFlowy-IO/appflowy

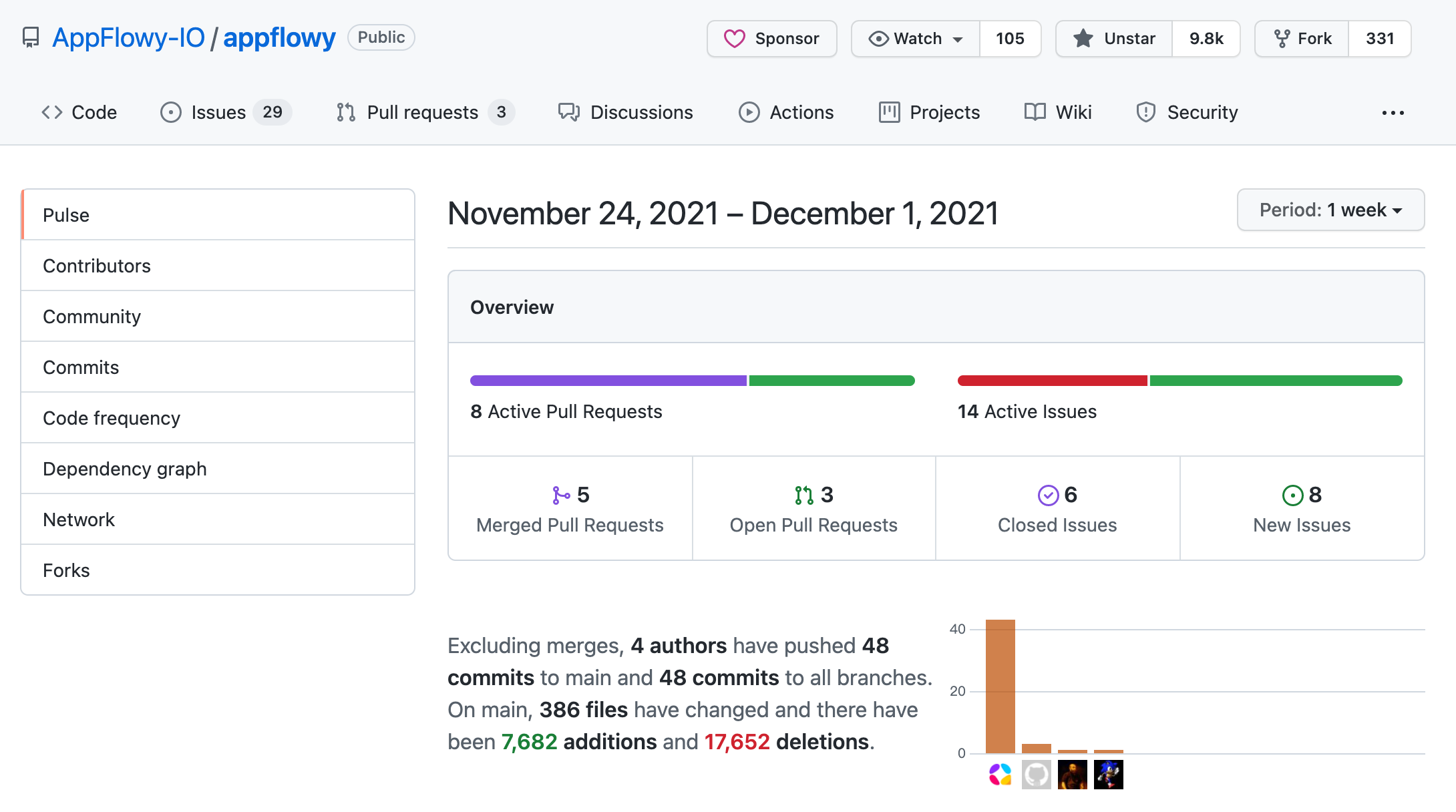

也就 1 周 star 9.8k，我以为他是刷的。

目标&特色

目标替代 Notion
数据 100% 自己管理
开源方式提供，你可以自己改
多平台支持
原生体验，估计是用了 flutter 关系

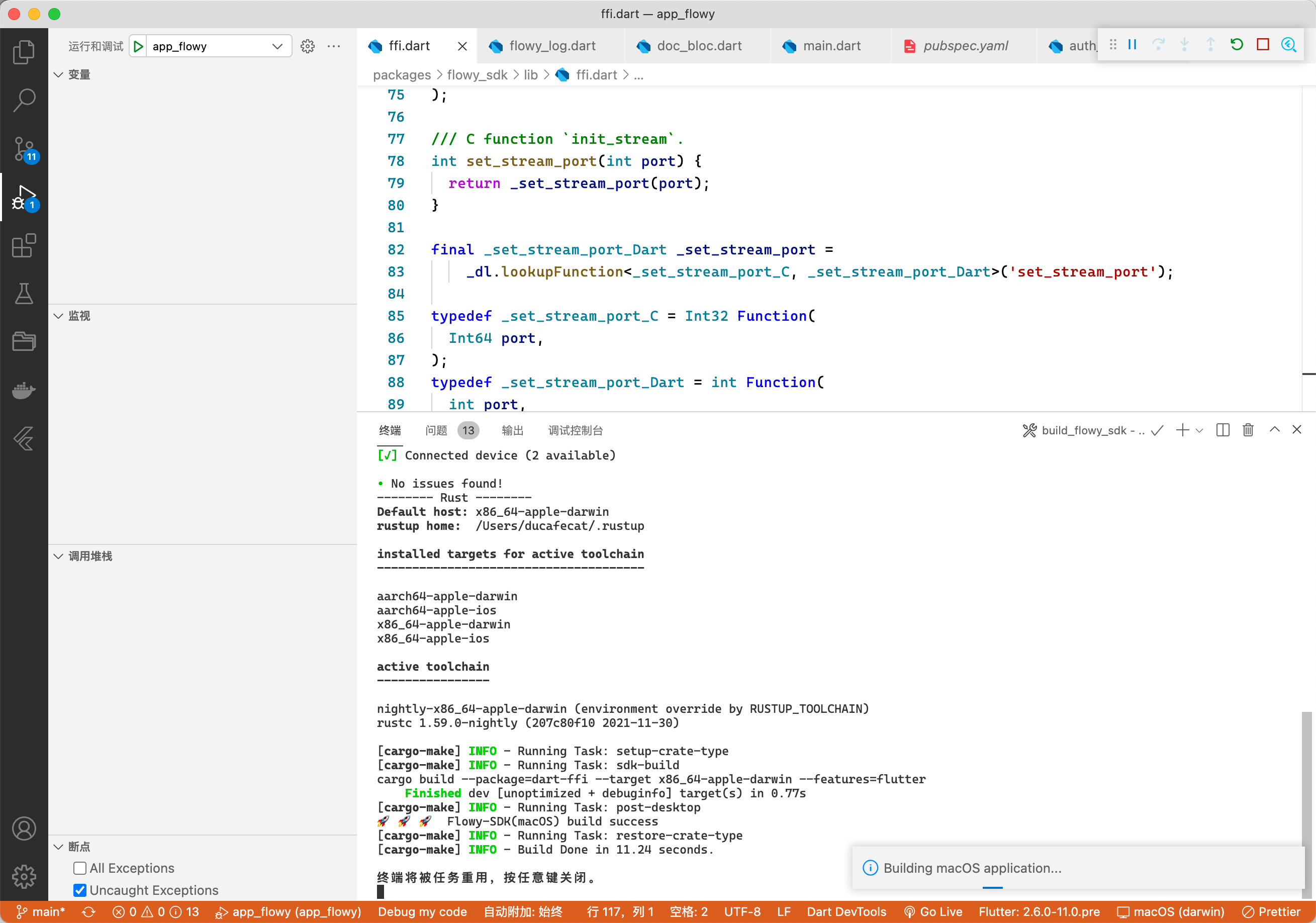

编译运行

1. git clone

1	git clone https://github.com/AppFlowy-IO/appflowy.git

1. 安装 rust


cd appflowy/frontend

make install_rust

source $HOME/.cargo/env

make install_cargo_make

cargo make install_targets

1. 切换 flutter dev

flutter channel dev

or

fvm use dev
fvm global dev

1. flutter 启用 desktop

# for windows
flutter config --enable-windows-desktop

# for macos
flutter config --enable-macos-desktop

# for linux
flutter config --enable-linux-desktop

1. 用 vscode 或者其它 idea 打开

1	open appflowy/frontend

代码架构

技术选型
- flutter: 多端适配
- rust: ffi 平台接口、服务端

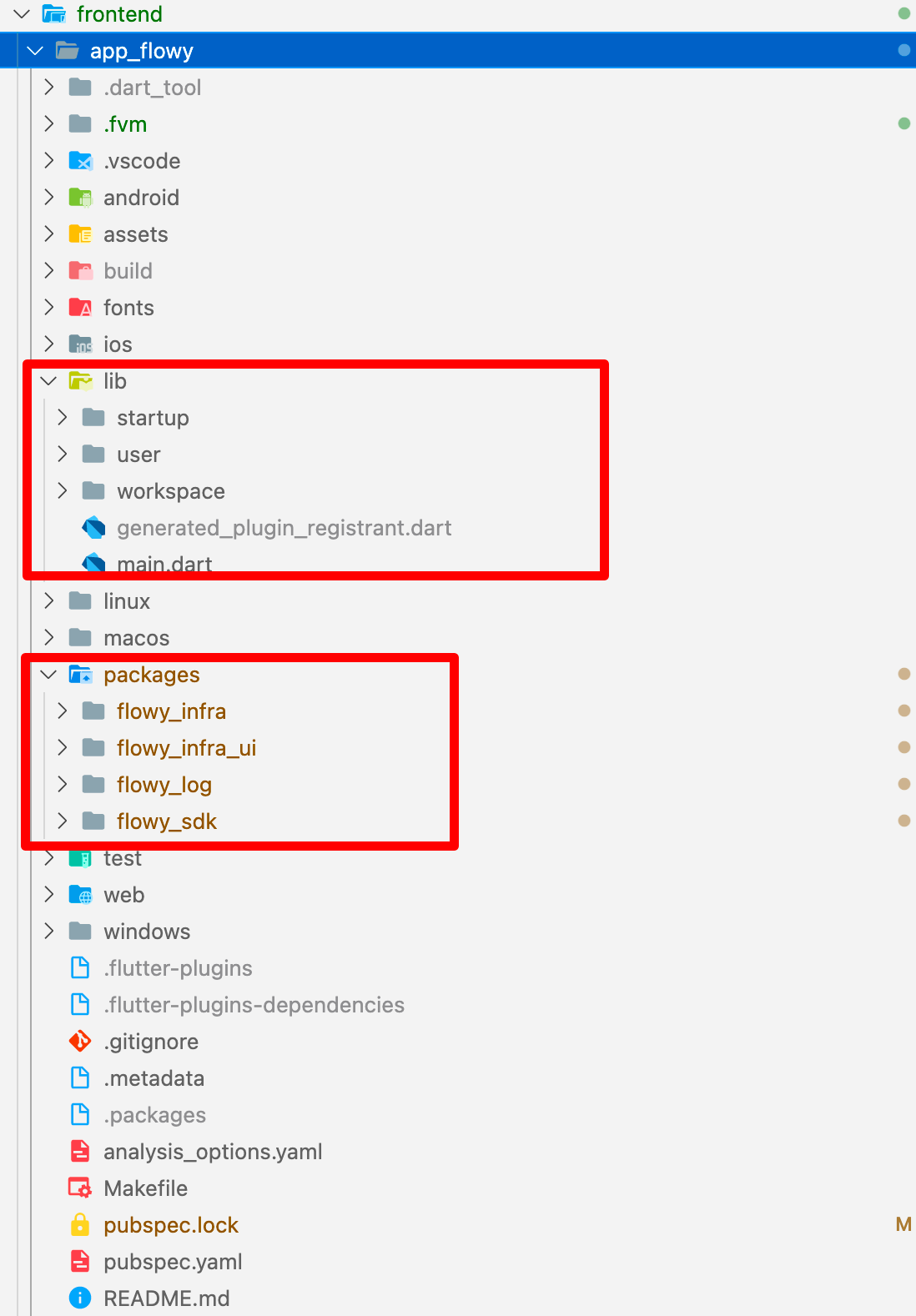

flutter 端 frontend/app_flowy

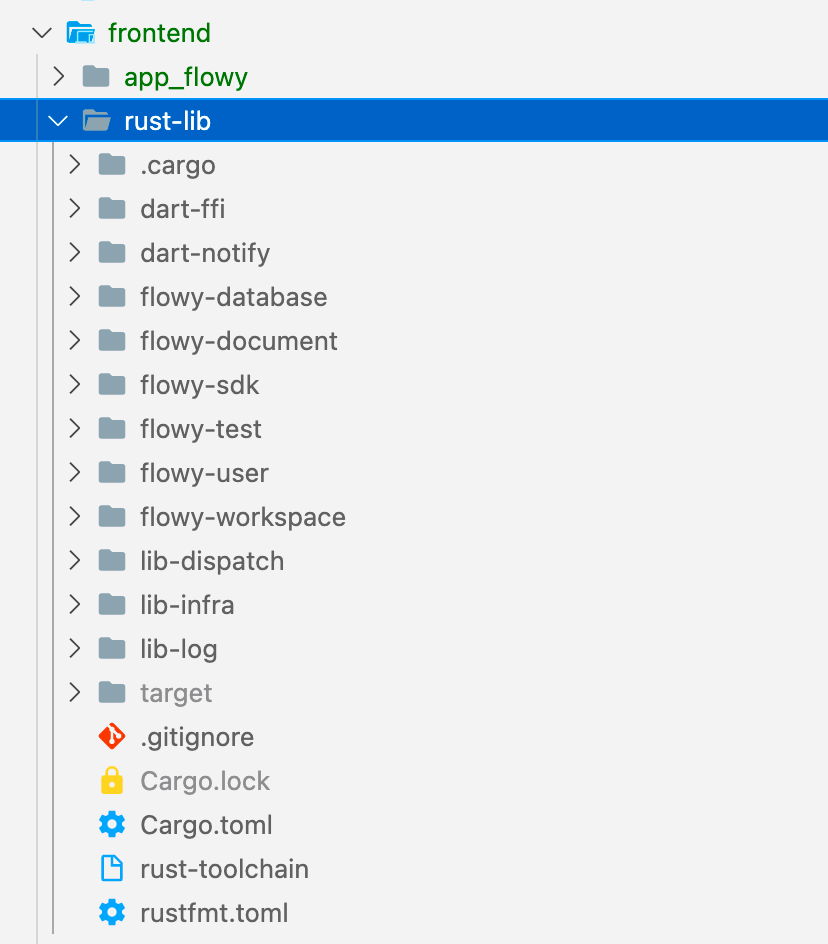

前端业务 rust 层 frontend/rust-lib

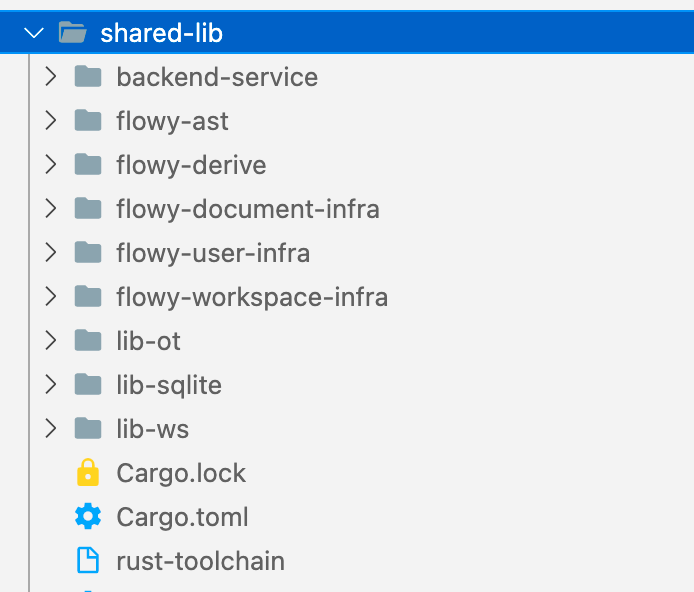

共享库 shared-lib shared-lib

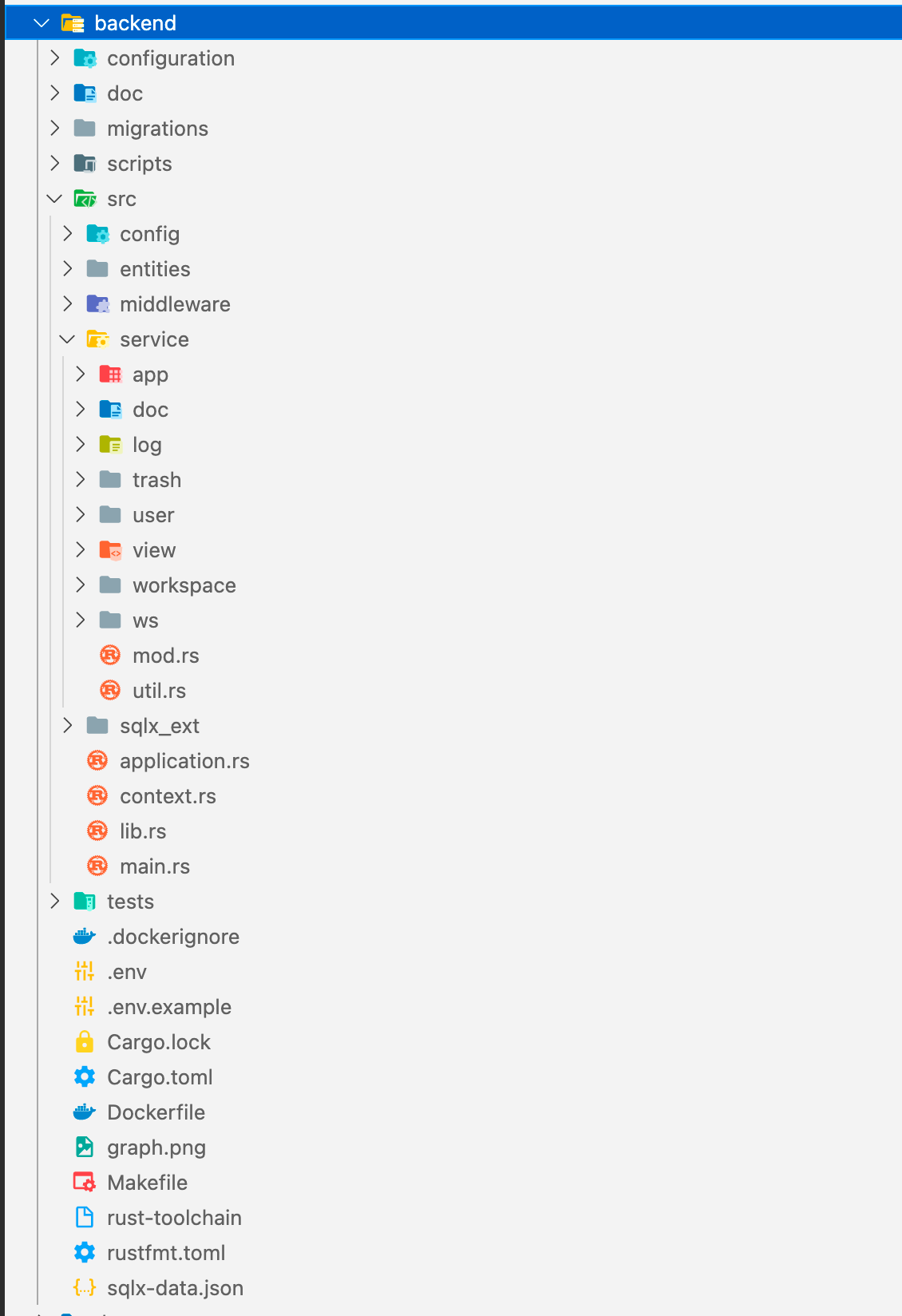

后端 rust api backend

参阅技术说明 `doc`

系统设计说明 doc/APPFLOWY_SYSTEM_DESIGN.md

                        Frontend                                                     FLowySDK
                                                             │                                              ┌─────────┐
                                                             │                                          ┌7─▶│Handler A│
                                                             │                                          │   └─────────┘
                                                             │                             ┌─────────┐  │   ┌─────────┐
┌──────┐    ┌────┐    ┌──────────────┐                       │                        ┌───▶│Module A │──┼──▶│Handler B│
│Widget│─1─▶│Bloc│─2─▶│ Repository A │─3─┐                   │                        │    └─────────┘  │   └─────────┘
└──────┘    └────┘    └──────────────┘   │                   │                        │                 │   ┌─────────┐
                      ┌──────────────┐   │    ┌───────┐    ┌─┴──┐     ┌───────────┐   │    ┌─────────┐  └──▶│Handler C│
                      │ Repository B │───┼───▶│ Event │─4─▶│FFI │─5──▶│Dispatcher │─6─┼───▶│Module B │      └─────────┘
                      └──────────────┘   │    └───────┘    └─┬──┘     └───────────┘   │    └─────────┘
                      ┌──────────────┐   │                   │                        │
                      │ Repository C │───┘                   │                        │    ┌─────────┐
                      └──────────────┘                       │                        └───▶│Module C │
                                                             │                             └─────────┘
                                                             │
                                                             │

Here are the event flow:

User click on the Widget(The user interface) that invokes the Bloc actions
Bloc calls the repositories to perform additional operations to handle the actions.
Repository offers the functionalities by combining the event, defined in the FlowySDK.
Events will be passed in the FlowySDK through the FFI interface.
Dispatcher parses the event and generates the specific action scheduled in the FlowySDK runtime.
Dispatcher find the event handler declared by the modules.
Handler consumes the event and generates the response. The response will be returned to the widget through the FFI.

The event flow will be discussed in two parts: the frontend implemented in flutter and the FlowySDK implemented in Rust.

linux 编译说明 doc/BUILD_ON_LINUX.md
windows 编译说明 doc/BUILD_ON_WINDOWS.md
贡献参与说明 doc/CONTRIBUTING.md
DDD 设计说明 doc/DOMAIN_DRIVEN_DESIGN.md

┌──────────────────────────────────────────────────┐         ─────────▶
│                Presentation Layer                │──┐      Dependency
└──────────────────────────────────────────────────┘  │
                          │                           │
                          ▼                           │
┌──────────────────────────────────────────────────┐  │
│                Application Layer                 │  │
└──────────────────────────────────────────────────┘  │
                          │                           │
                          ▼                           │
┌──────────────────────────────────────────────────┐  │
│                   Domain Layer                   │◀─┘
└──────────────────────────────────────────────────┘
                          ▲
                          │
┌──────────────────────────────────────────────────┐
│               Infrastructure Layer               │
└──────────────────────────────────────────────────┘

Presentation Layer:

Responsible for presenting information to the user and interpreting user commands.
Consists of Widgets and also the state of the Widgets.

Application Layer:

Defines the jobs the software is supposed to do. (Shouldn’t find any UI code or network code)
Coordinates the application activity and delegates work to the next layer down.
It doesn’t contain any complex business logic but the basic validation on the user input before
passing to the other layer.

Domain Layer:

Responsible for representing concepts of the business.
Manages the business state or delegated to the infrastructure layer.
Self contained and it doesn’t depend on any other layers. Domain should be well isolated from the
other layers.

Infrastructure Layer:

Provides generic technical capabilities that support the higher layers. It deals with APIs, persistence and network, etc.
Implements the repository interface and hiding the complexity of the Domain layer.

编辑器 doc/EDITOR.md
roadmap

https://trello.com/b/NCyXCXXh/appflowy-roadmap

看看本地文件在哪里

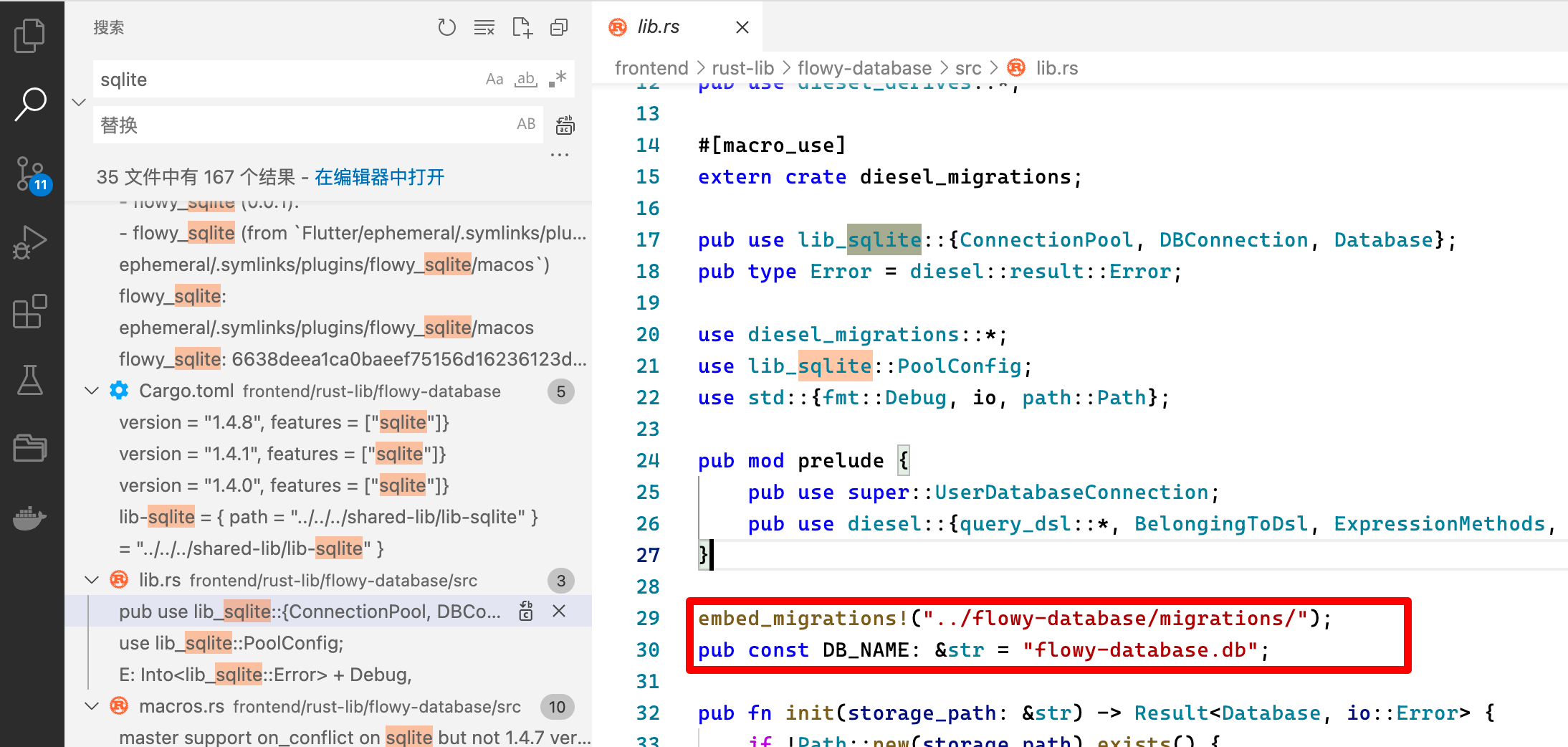

找到 sqlite

搜索本地

1
2
3

find ~ -iname 'flowy-database.db'

~/Library/Containers/com.appflowy.macos/Data/Documents/flowy/fd3ada7d-7653-4196-90e1-7de0019627bc/flowy-database.db

flutter 插件

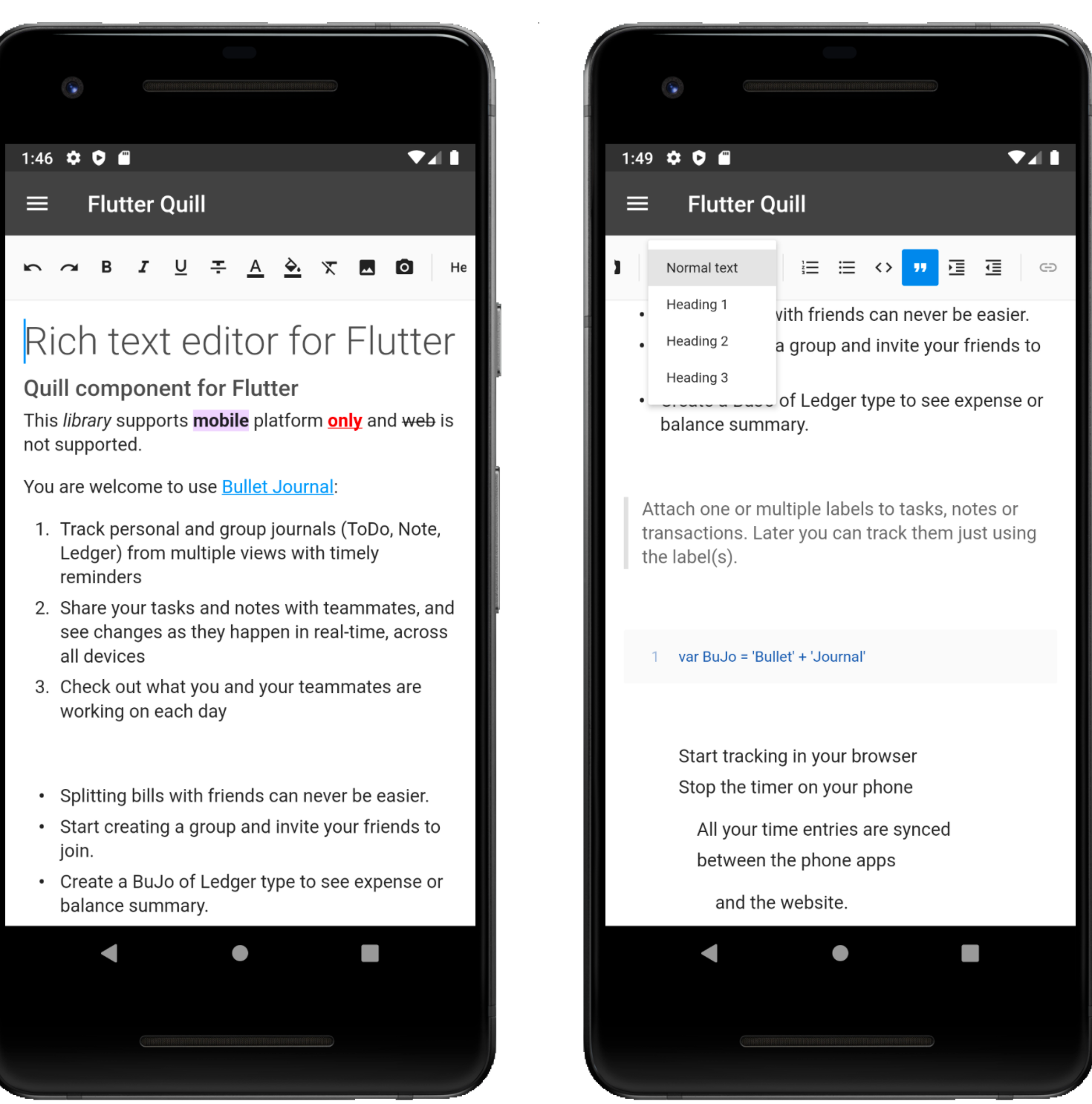

flutter-quill

https://github.com/singerdmx/flutter-quill

富文本编辑器

freezed

https://pub.flutter-io.cn/packages/freezed

数据 model 生成器，支持注解方式

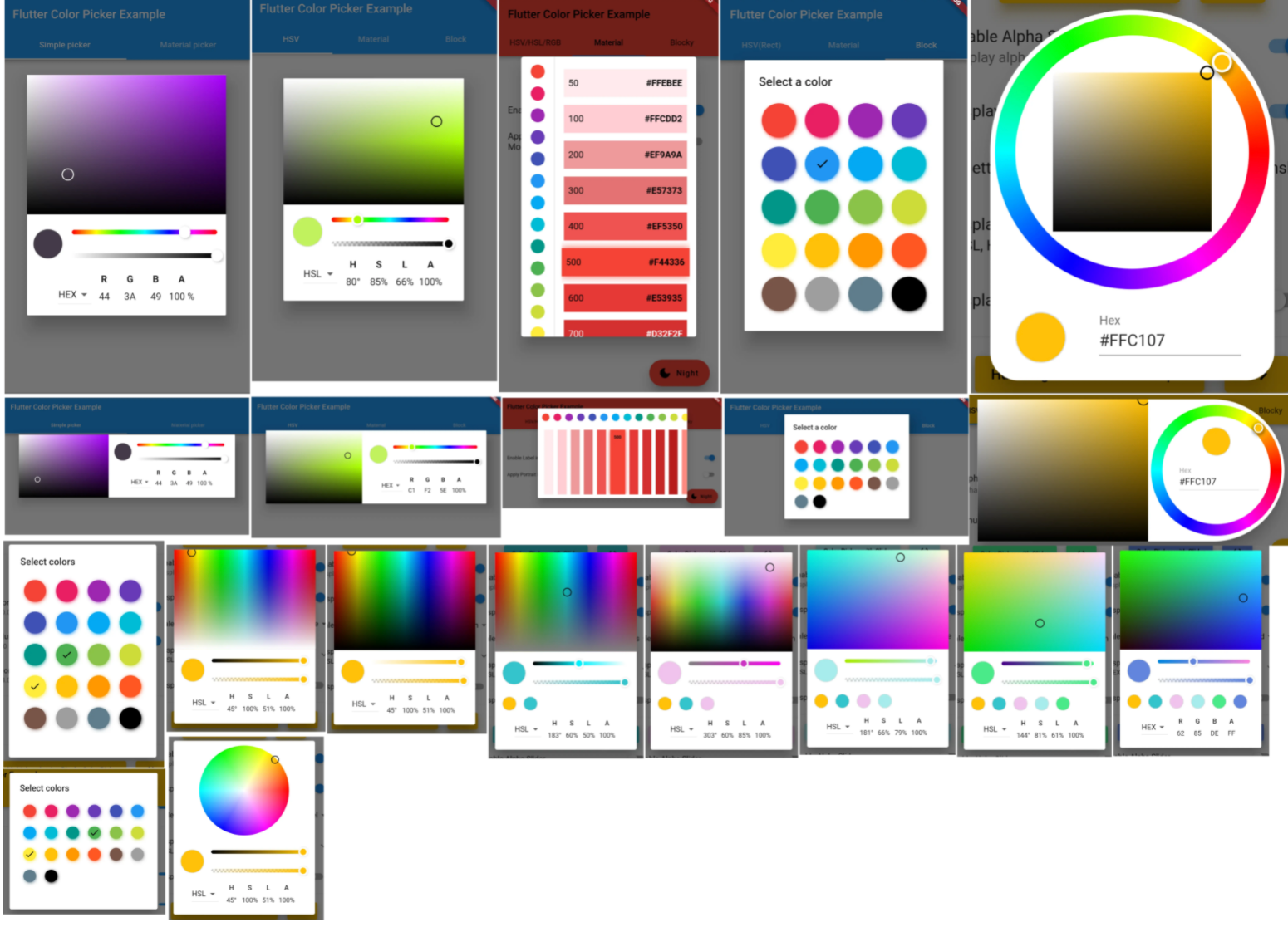

flutter_colorpicker

https://pub.flutter-io.cn/packages/flutter_colorpicker

颜色选取工具

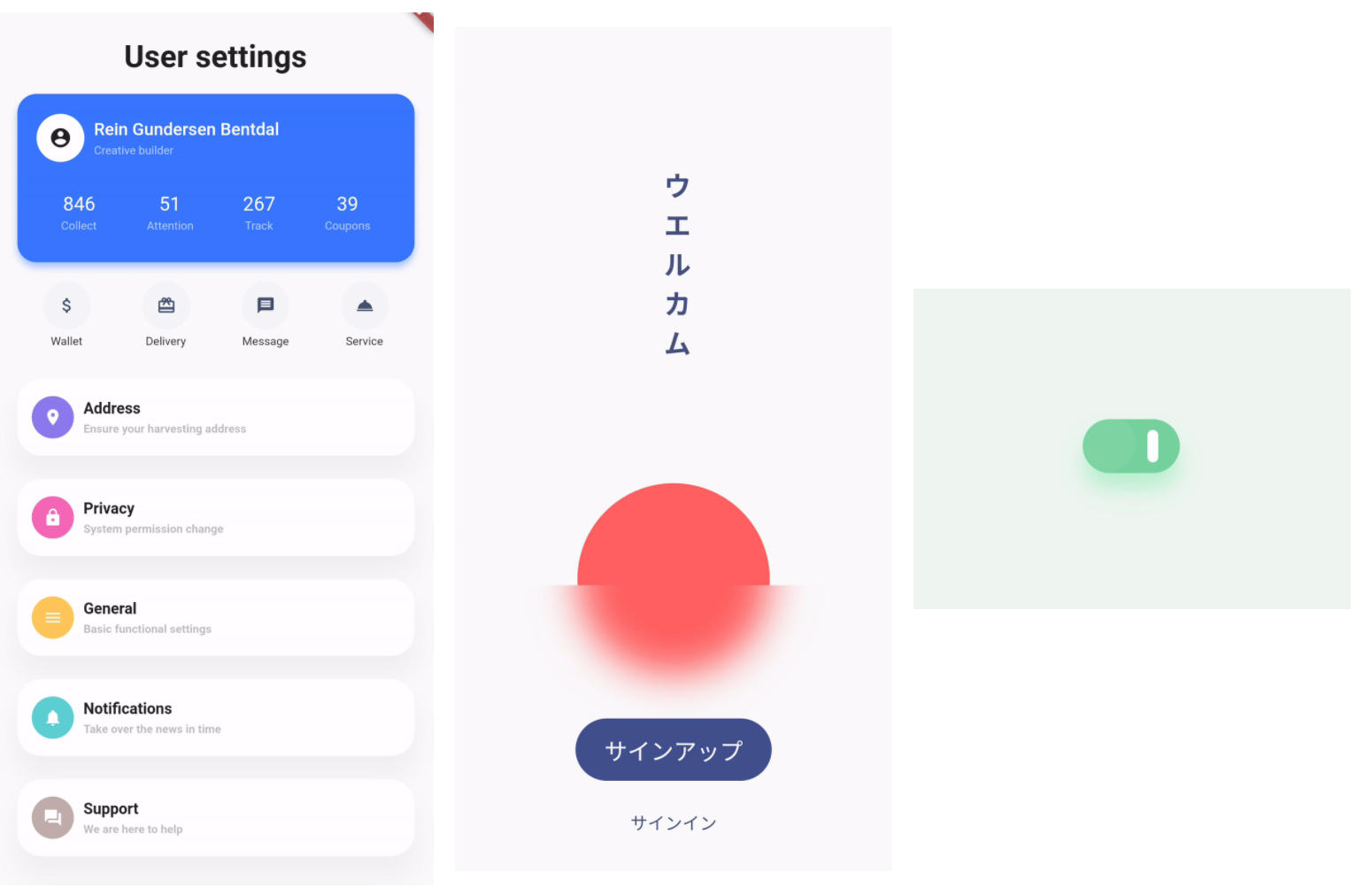

styled_widget

https://pub.flutter-io.cn/packages/styled_widget

简化小组件定义

Icon(OMIcons.home, color: Colors.white)
  .padding(all: 10)
  .decorated(color: Color(0xff7AC1E7), shape: BoxShape.circle)
  .padding(all: 15)
  .decorated(color: Color(0xffE8F2F7), shape: BoxShape.circle)
  .padding(all: 20)
  .card(
    elevation: 10,
    shape: RoundedRectangleBorder(
      borderRadius: BorderRadius.circular(20),
    ),
  )
  .alignment(Alignment.center)
  .backgroundColor(Color(0xffEBECF1));

get_it

https://pub.flutter-io.cn/packages/get_it

全局访问你的业务对象，你可以拆分业务和 UI

// 定义

final getIt = GetIt.instance;

void setup() {
  getIt.registerSingleton<AppModel>(AppModel());

// Alternatively you could write it if you don't like global variables
  GetIt.I.registerSingleton<AppModel>(AppModel());
}

// 使用

MaterialButton(
  child: Text("Update"),
  onPressed: getIt<AppModel>().update   // given that your AppModel has a method update
),
