本节目标

  • 闲鱼手册中提到的混合开发
  • 编写到使用一个 flutter 组件的完整过程

视频

https://www.bilibili.com/video/bv1iT4y1j72t

代码

https://github.com/ducafecat/flutter_baidu_plugin_ducafecat/releases/tag/1.0.1

正文

从古至今、移动开发不可回避的问题

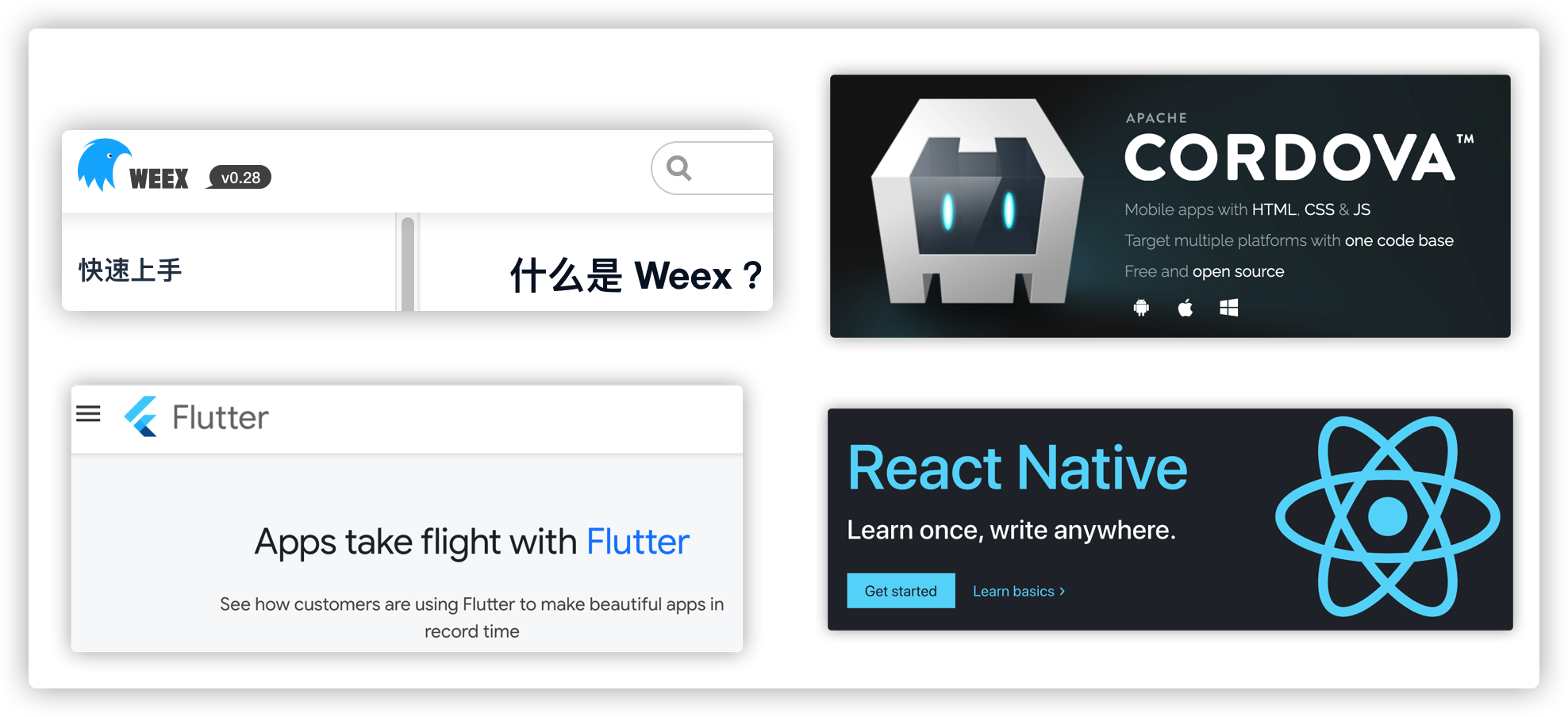

  • flutter、weex、React Native、Cordova

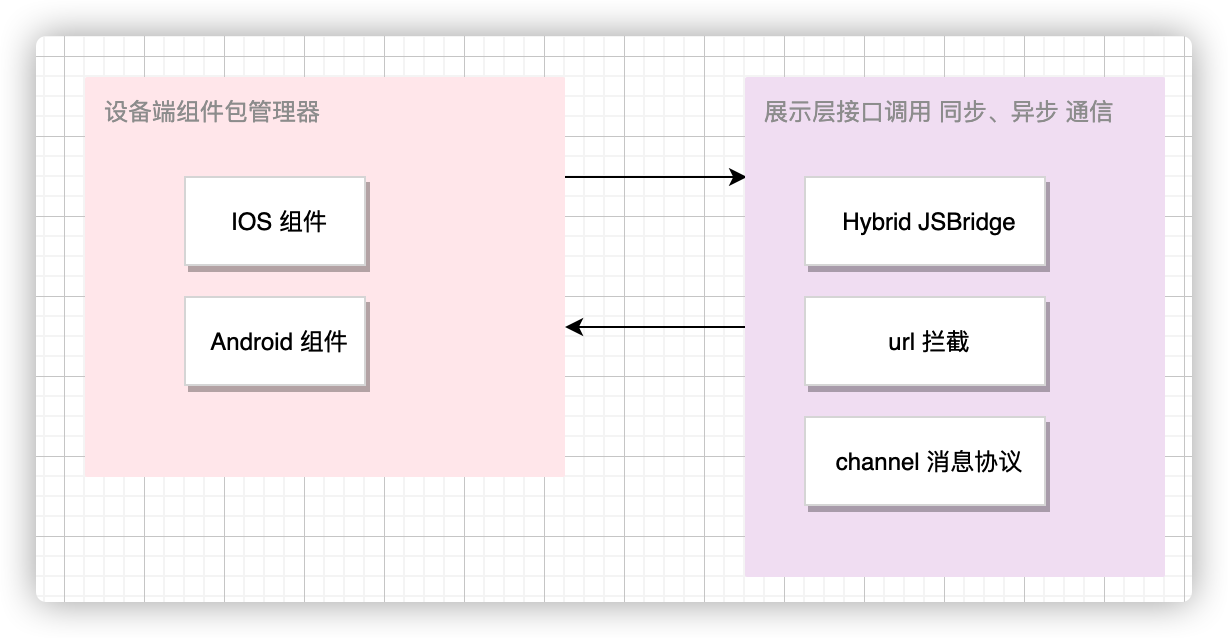

  • 开发模式

聊聊 Flutter in Action 闲鱼最佳实践

电子书下载

https://c.tb.cn/I3.ZZpRl

第二代混合技术方案 FlutterBoost

  • 项目开源地址

https://github.com/alibaba/flutter_boost

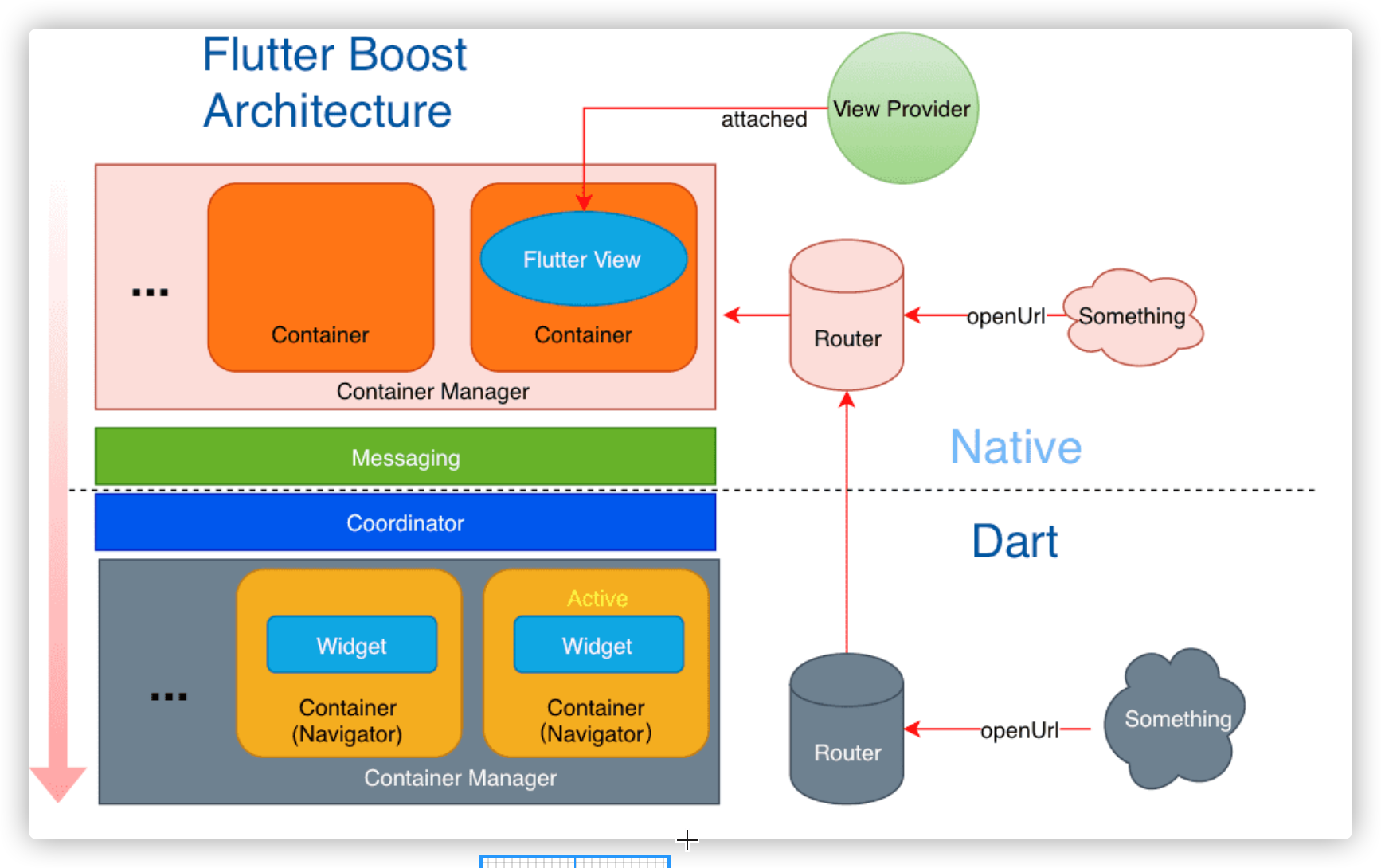

  • 架构图
  • Native 层概念

● Container：Native 容器，平台 Controller，Activity，ViewController
● Container Manager：容器的管理者
● Adaptor：Flutter 是适配层
● Messaging：基于 Channel 的消息通信

  • Dart 层概念

● Container：Flutter 用来容纳 Widget 的容器，具体实现为 Navigator 的派生类
● Container Manager：Flutter 容器的管理，提供 show，remove 等 Api
● Coordinator: 协调器，接受 Messaging 消息，负责调用 Container Manager 的状态管理。
● Messaging：基于 Channel 的消息通信

Flutter & FaaS 云端一体化

Flutter 会为以下团队带来较大的收益

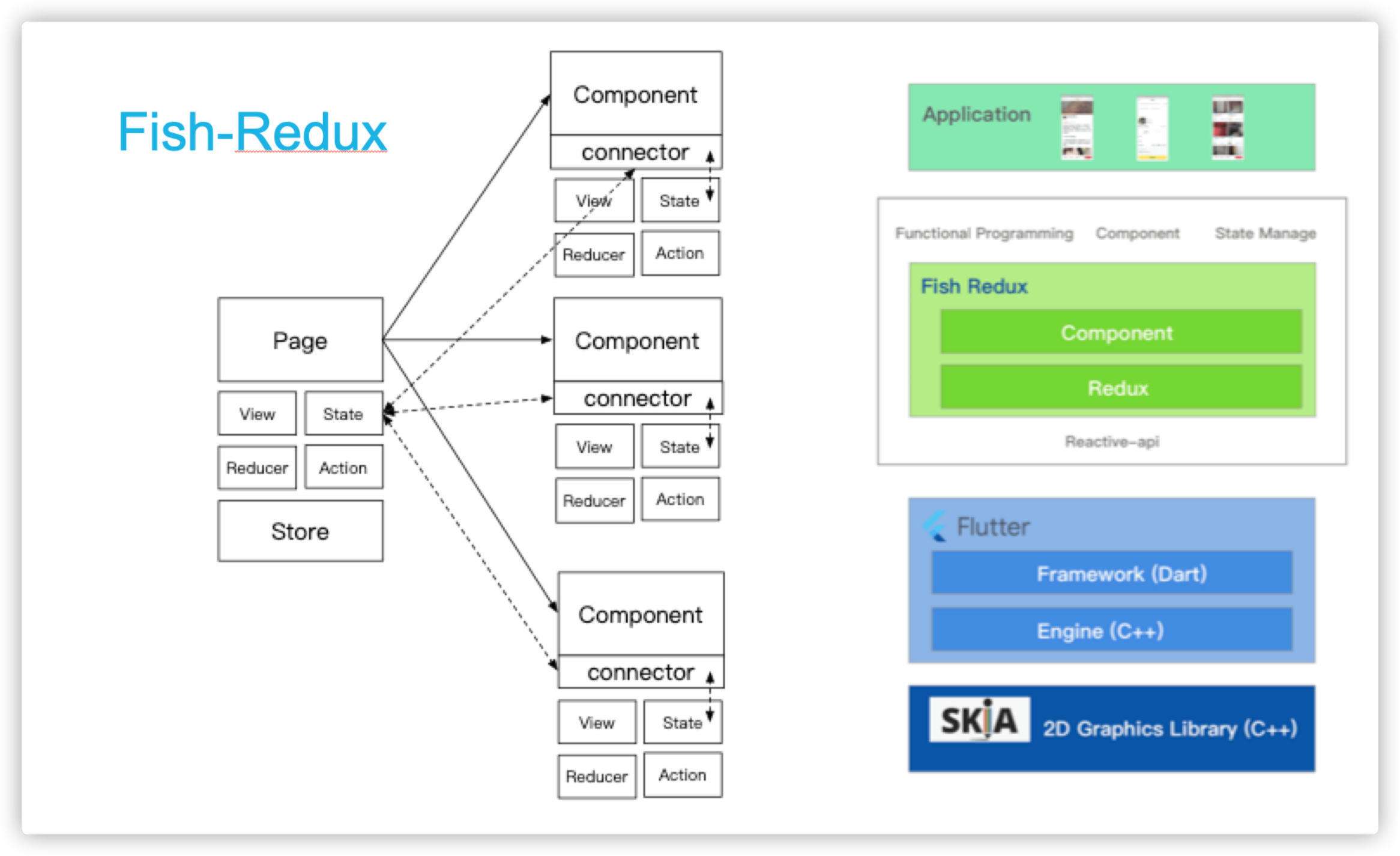

Flutter Redux

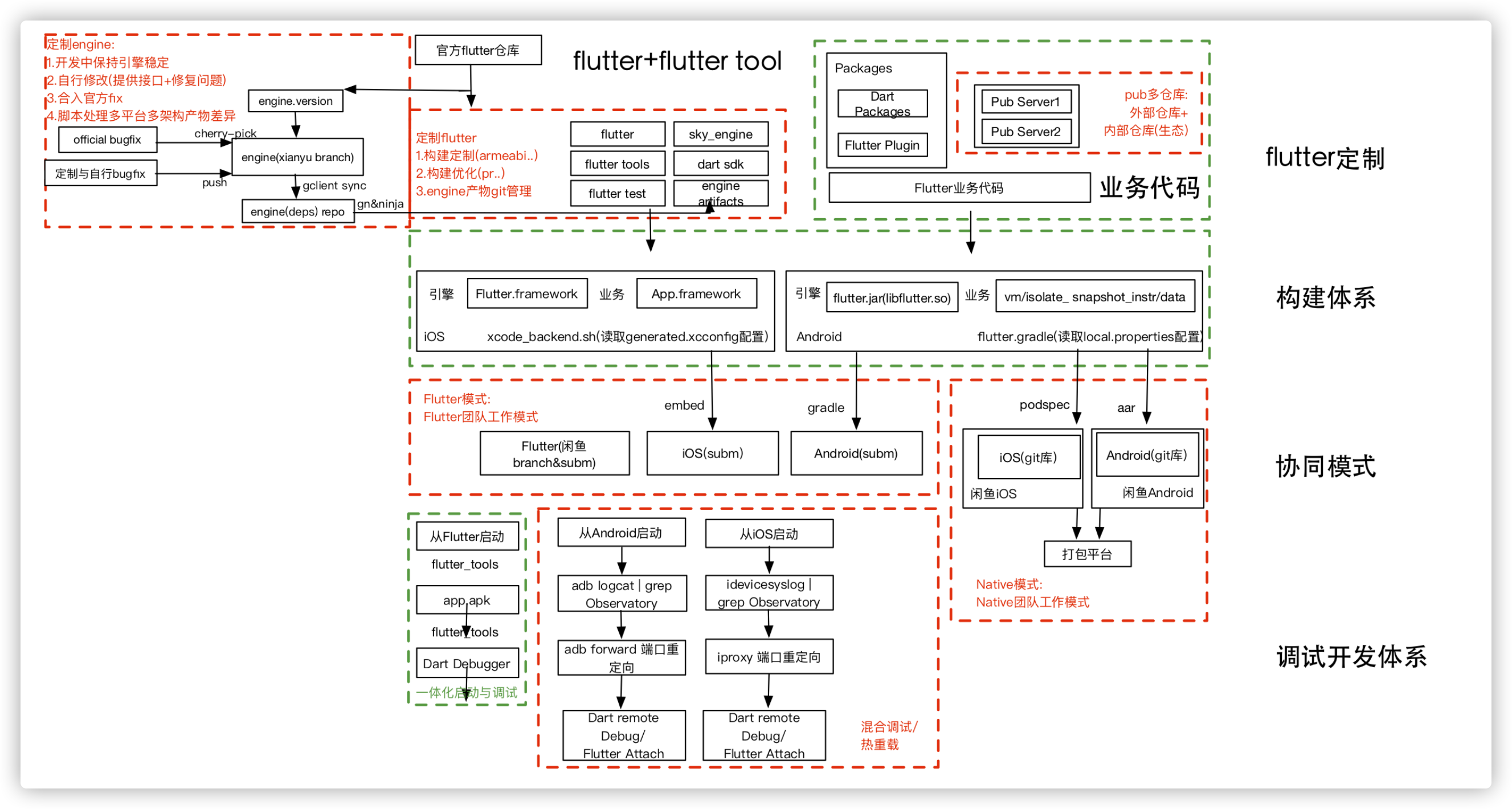

混合工程下的 Flutter 研发结构

动手写第一个 Flutter 组件

创建 flutter 组件工程

1
$ flutter create --org tech.ducafecat --template=plugin -a java -i objc flutter-baidu-plugin-ducafecat

加入 加法 函数

  • dart 代码

lib/flutter_baidu_plugin_ducafecat.dart

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
import 'dart:async';

import 'package:flutter/services.dart';

class FlutterBaiduPluginDucafecat {
  static const MethodChannel _channel =
      const MethodChannel('flutter_baidu_plugin_ducafecat');

  static Future<String> get platformVersion async {
    final String version = await _channel.invokeMethod('getPlatformVersion');
    return version;
  }

  static Future<int> duAddOne(int num) async {
    final int val = await _channel.invokeMethod('duAddOne', {"num": num});
    return val;
  }
}
  • android 代码

android/src/main/java/tech/ducafecat/flutter_baidu_plugin_ducafecat/FlutterBaiduPluginDucafecatPlugin.java

1
2
3
4
5
6
7
8
9
10
11
12
13
14
@Override
public void onMethodCall(@NonNull MethodCall call, @NonNull Result result) {
  if (call.method.equals("getPlatformVersion")) {
    result.success("Android " + android.os.Build.VERSION.RELEASE);
  }
  else if (call.method.equals("duAddOne")) {
    int val = 100;
    val += Integer.valueOf(call.argument("num").toString());
    result.success(val);
  }
  else {
    result.notImplemented();
  }
}
  • ios 代码

ios/Classes/FlutterBaiduPluginDucafecatPlugin.m

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
#import "FlutterBaiduPluginDucafecatPlugin.h"

@implementation FlutterBaiduPluginDucafecatPlugin
+ (void)registerWithRegistrar:(NSObject<FlutterPluginRegistrar>*)registrar {
  FlutterMethodChannel* channel = [FlutterMethodChannel
      methodChannelWithName:@"flutter_baidu_plugin_ducafecat"
            binaryMessenger:[registrar messenger]];
  FlutterBaiduPluginDucafecatPlugin* instance = [[FlutterBaiduPluginDucafecatPlugin alloc] init];
  [registrar addMethodCallDelegate:instance channel:channel];
}

- (void)handleMethodCall:(FlutterMethodCall*)call result:(FlutterResult)result {
  if ([@"getPlatformVersion" isEqualToString:call.method]) {
    result([@"iOS " stringByAppendingString:[[UIDevice currentDevice] systemVersion]]);
  }
  else if ([@"duAddOne" isEqualToString:call.method]) {
      NSInteger val = 100;
      val += [[call.arguments objectForKey:@"num"] intValue];
      result([NSNumber numberWithLong:val]);
  }
  else {
    result(FlutterMethodNotImplemented);
  }
}

@end

新建工程调用

  • pubspec.yaml
1
2
3
4
flutter_baidu_plugin_ducafecat:
  git:
    url: https://github.com/ducafecat/flutter_baidu_plugin_ducafecat
    version: ^0.0.1
  • 调用 加法
1
2
3
4
void _incrementCounter() async {
  _counter = await FlutterBaiduPluginDucafecat.duAddOne(20);
  setState(() {});
}

参考
