本节目标

  • 安装 docker
  • 启动 yapi
  • 备份、恢复 yapi

正文

安装 Windows 10 专业工作站版

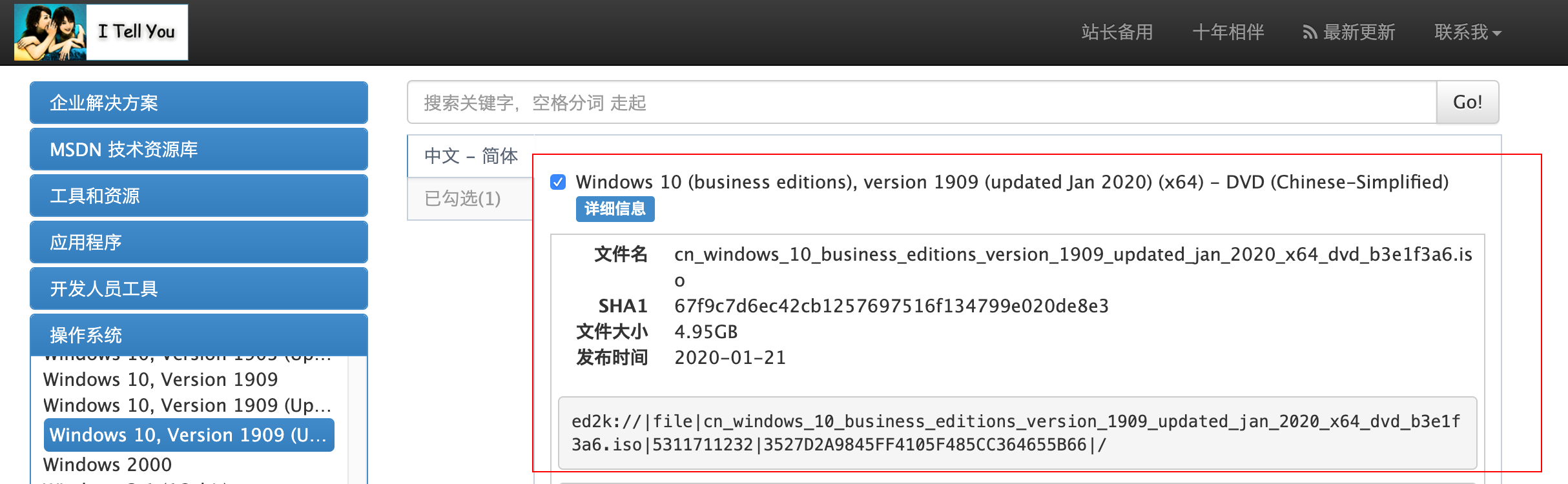

  • i tell you

https://msdn.itellyou.cn/

  • 选用 business 镜像

安装 docker

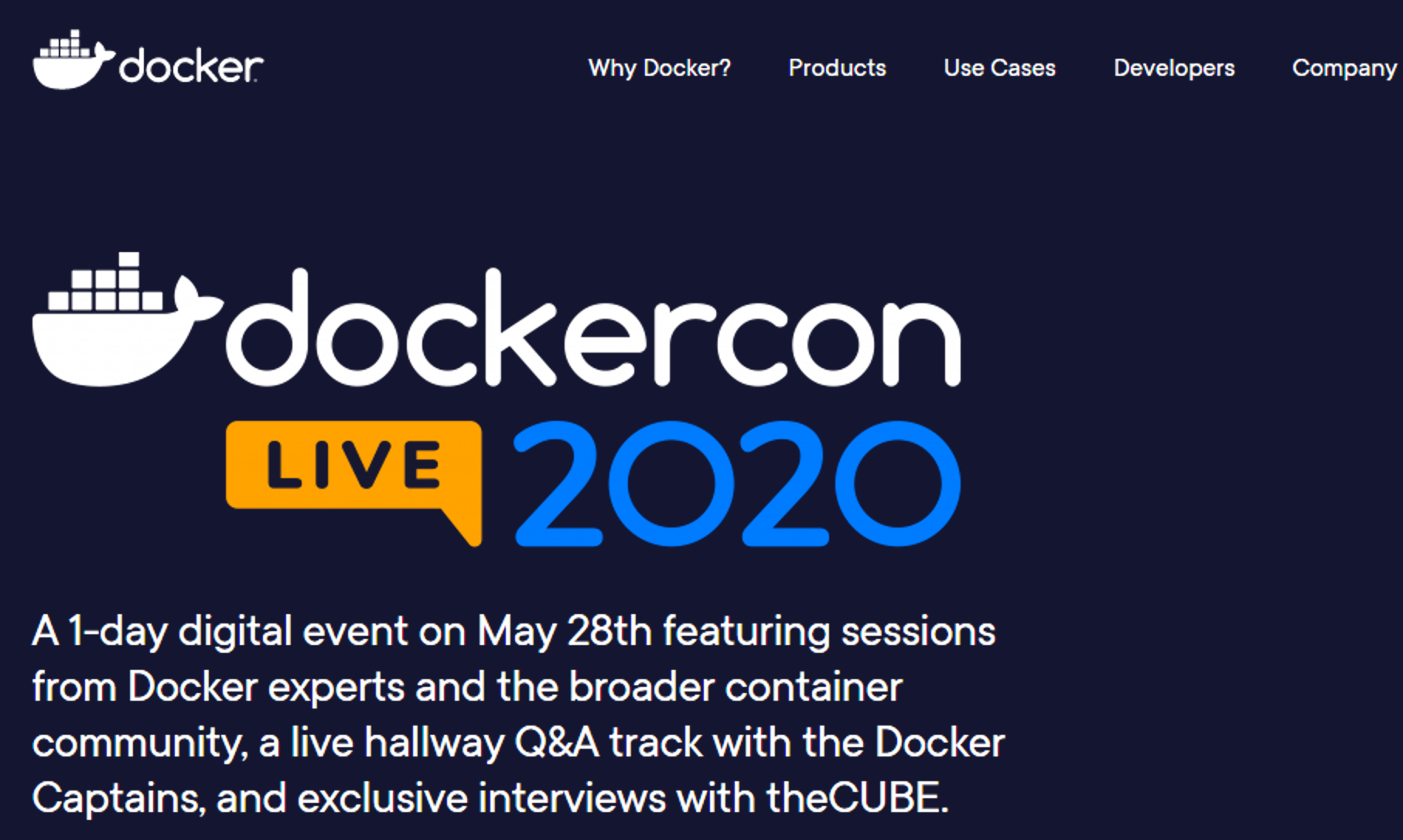

  • 官网

https://www.docker.com/

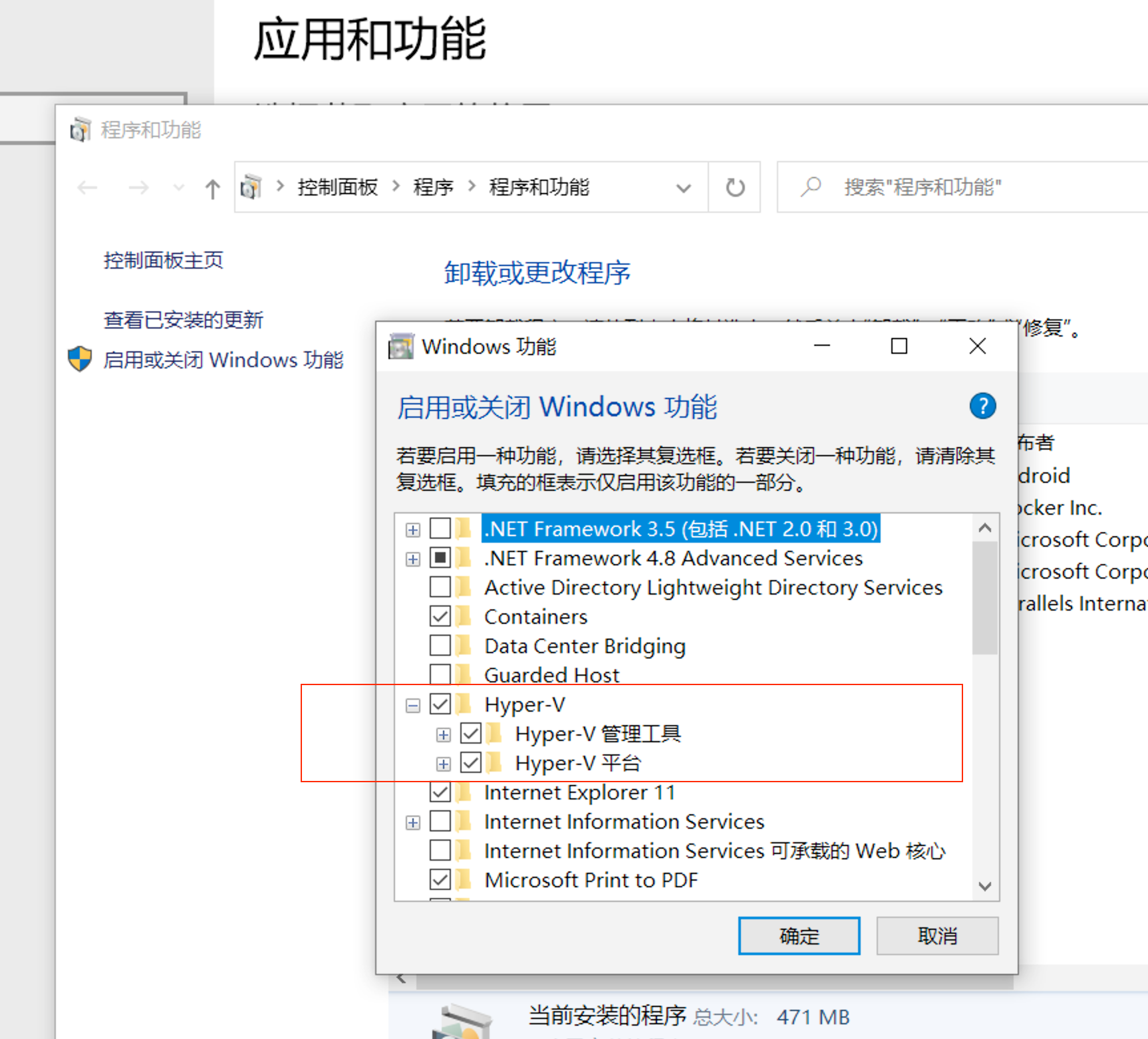

  • 启用 Hyper-V

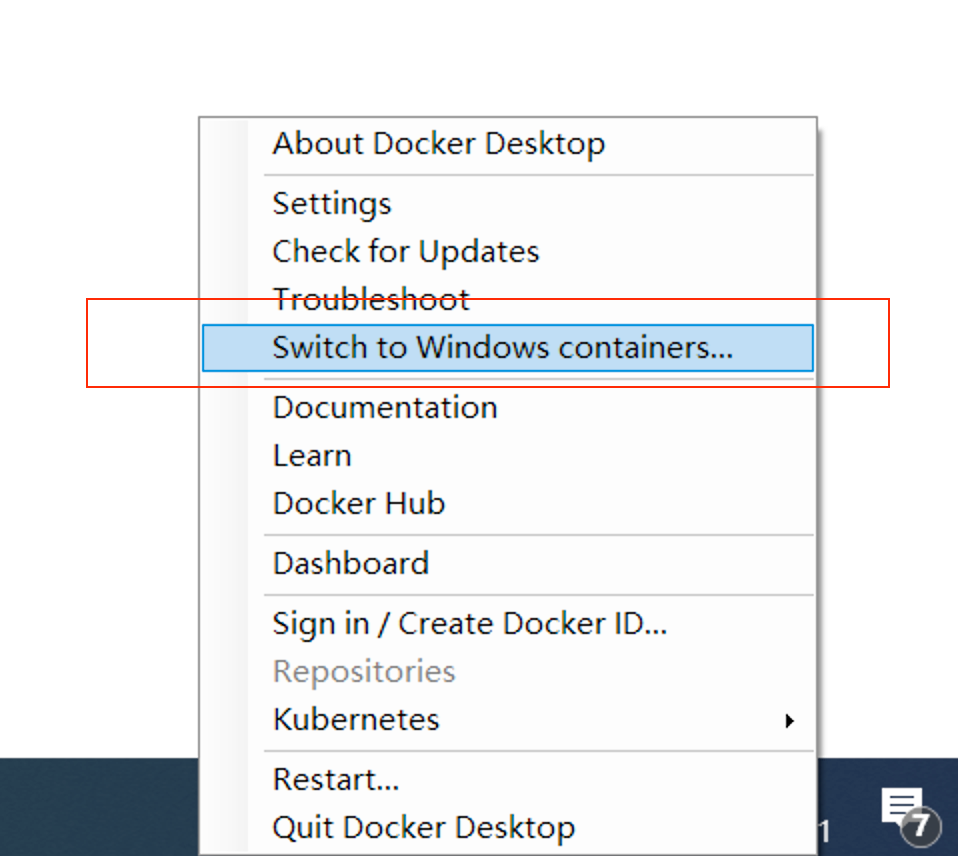

  • 切换 linunx container

阿里镜像加速

  • 阿里镜像加速

https://cr.console.aliyun.com/cn-zhangjiakou/instances/mirrors

1
2
3
4
5
6
{
	"registry-mirrors": ["https://你的代码.mirror.aliyuncs.com"],
	"insecure-registries": [],
	"debug": true,
	"experimental": true
}

docker-compose 配置 yapi

  • .env
1
PASSWORD=$V7iTNk5N8#AkOeiwO@BywzBFte2^WsAuI$eJ4k9CKV0riqe
  • docker-compose.yml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
version: "3"
services:
  mongo-yapi:
    image: mongo
    container_name: mongo-ypai
    restart: always
    # ports:
    #   - 27017:27017
    environment:
      - TZ=Asia/Shanghai
      - MONGO_INITDB_DATABASE=yapi
      # - MONGO_INITDB_ROOT_USERNAME=root
      # - MONGO_INITDB_ROOT_PASSWORD=${PASSWORD}
    volumes:
      # - ./docker-data/mongo-yapi:/data/db
      - mongo-data:/data/db
    networks:
      docker_net:
        ipv4_address: 172.22.0.11

  # https://github.com/fjc0k/docker-YApi
  web-yapi:
    image: jayfong/yapi:latest
    container_name: web-ypai
    restart: always
    ports:
      - 3000:3000
    depends_on:
      - mongo-yapi
    links:
      - mongo-yapi
    environment:
      - TZ=Asia/Shanghai
      - YAPI_ADMIN_ACCOUNT=admin@ducafecat.tech
      - YAPI_ADMIN_PASSWORD=${PASSWORD}
      - YAPI_CLOSE_REGISTER=true
      - YAPI_DB_SERVERNAME=mongo-yapi
      - YAPI_DB_PORT=27017
      - YAPI_DB_DATABASE=yapi
      # - YAPI_DB_USER=root
      # - YAPI_DB_PASS=${PASSWORD}
      - YAPI_MAIL_ENABLE=false
      - YAPI_LDAP_LOGIN_ENABLE=false
      - YAPI_PLUGINS=[]
    networks:
      docker_net:
        ipv4_address: 172.22.0.12

volumes:
  mongo-data:

networks:
  docker_net:
    driver: bridge
    ipam:
      config:
        - subnet: 172.22.0.0/16

启动、卸载 ypai 服务

  • 启动
1
$ docker-compose up -d
  • 卸载
1
$ docker-compose down

本地域名解析

  • C:\Windows\System32\drivers\etc\hosts
1
127.0.0.1 api.news.ducafecat.tech

查询 volume

1
2
3
4
5
$ docker volume ls
DRIVER              VOLUME NAME
local               2fc91e2fd47a7110c2ecc5c8b88b997c4e6ddcf471a1df04f3fb618238ffd8aa
local               26e58cd678a97108f6dcd2cab33b9de341f992ceedacb7fd772c196bec908306
local               yapi-volumes_mongo-data

备份数据

1
$ docker run --rm --volumes-from mongo-ypai -v c:\backup:/backup ubuntu tar cvf /backup/backup.tar -C /data/db .

还原数据

1
$ docker run --rm --volumes-from mongo-ypai -v c:\backup:/backup ubuntu bash -c "cd /data/db && tar xvf /backup/backup.tar -C /data/db "

资源

参考

视频

代码

https://github.com/ducafecat/docker-yapi.git
